DTC C1278/C1279: Valve Relay System: Notes

WARNING: This page is about a different variant/trim than selected.

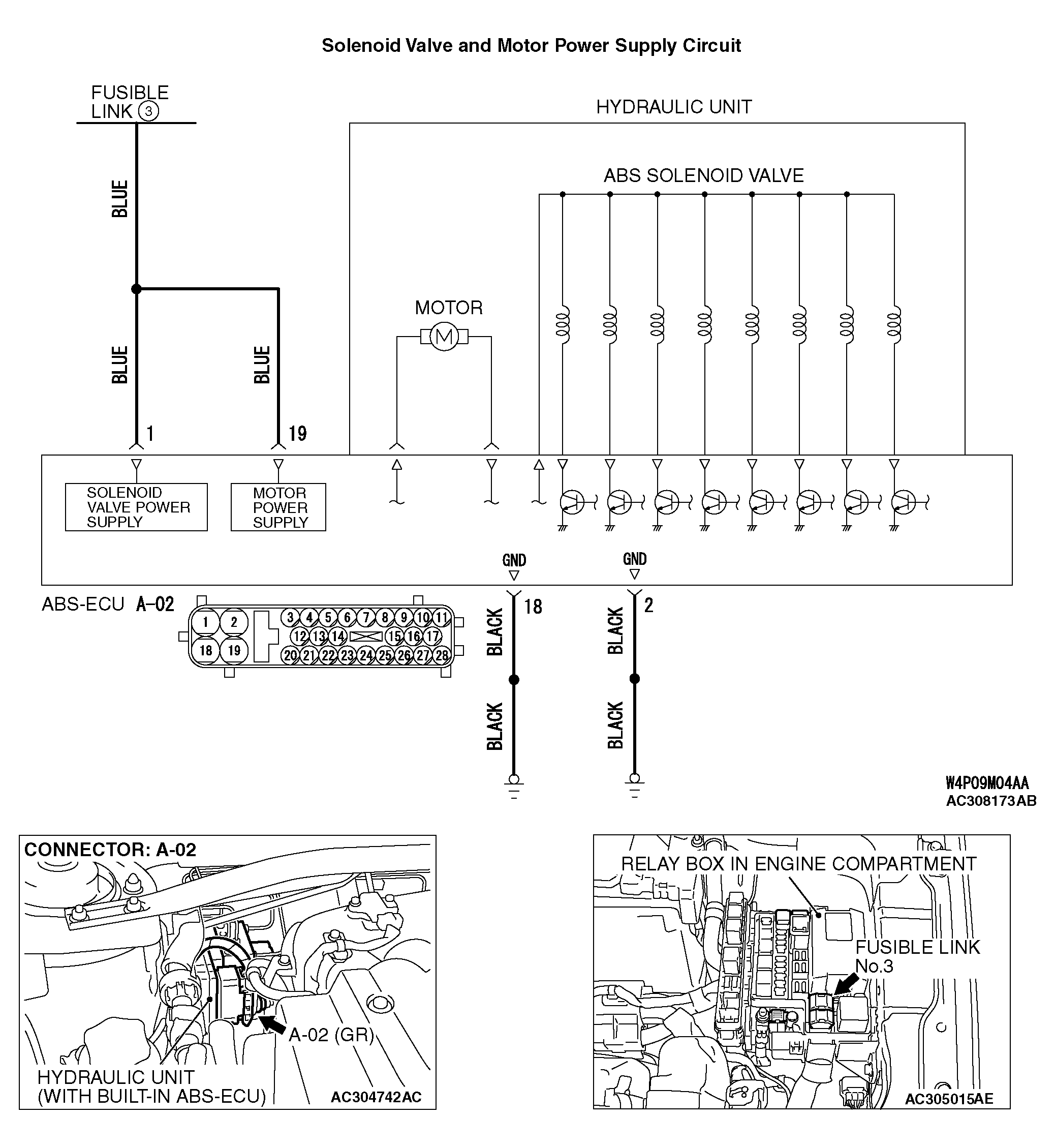

Fig 1: Identifying Solenoid Valve & Motor Power Supply Circuit Diagram
G04255375Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
CAUTION: If there is any problem in the CAN bus lines, an incorrect diagnostic trouble code may be set. Prior to this diagnosis, diagnose the CAN bus lines.
