DTC C1266/C1273/C1274: Motor System: Notes

WARNING: This page is about a different variant/trim than selected.

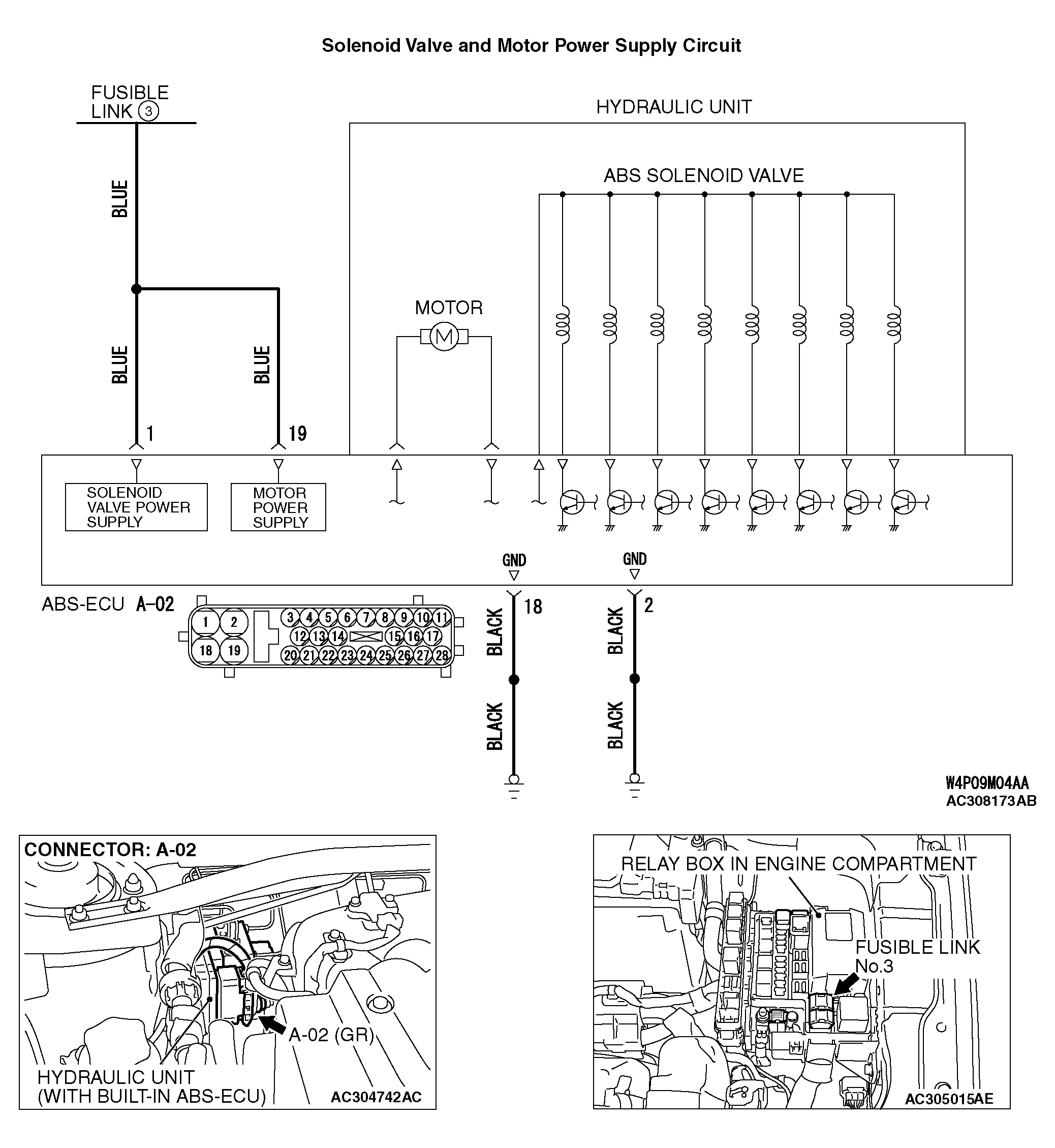

Fig 1: Identifying Solenoid Valve & Motor Power Supply Circuit Diagram
G04255366Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
CAUTION: If there is any problem in the CAN bus lines, an incorrect diagnostic trouble code may be set. Prior to this diagnosis, diagnose the CAN bus lines.
