DTC C1226/C1231/C1236/C1241/C1246/C1251/C1256/C1261: Abs Solenoid Valve: Notes

WARNING: This page is about a different variant/trim than selected.

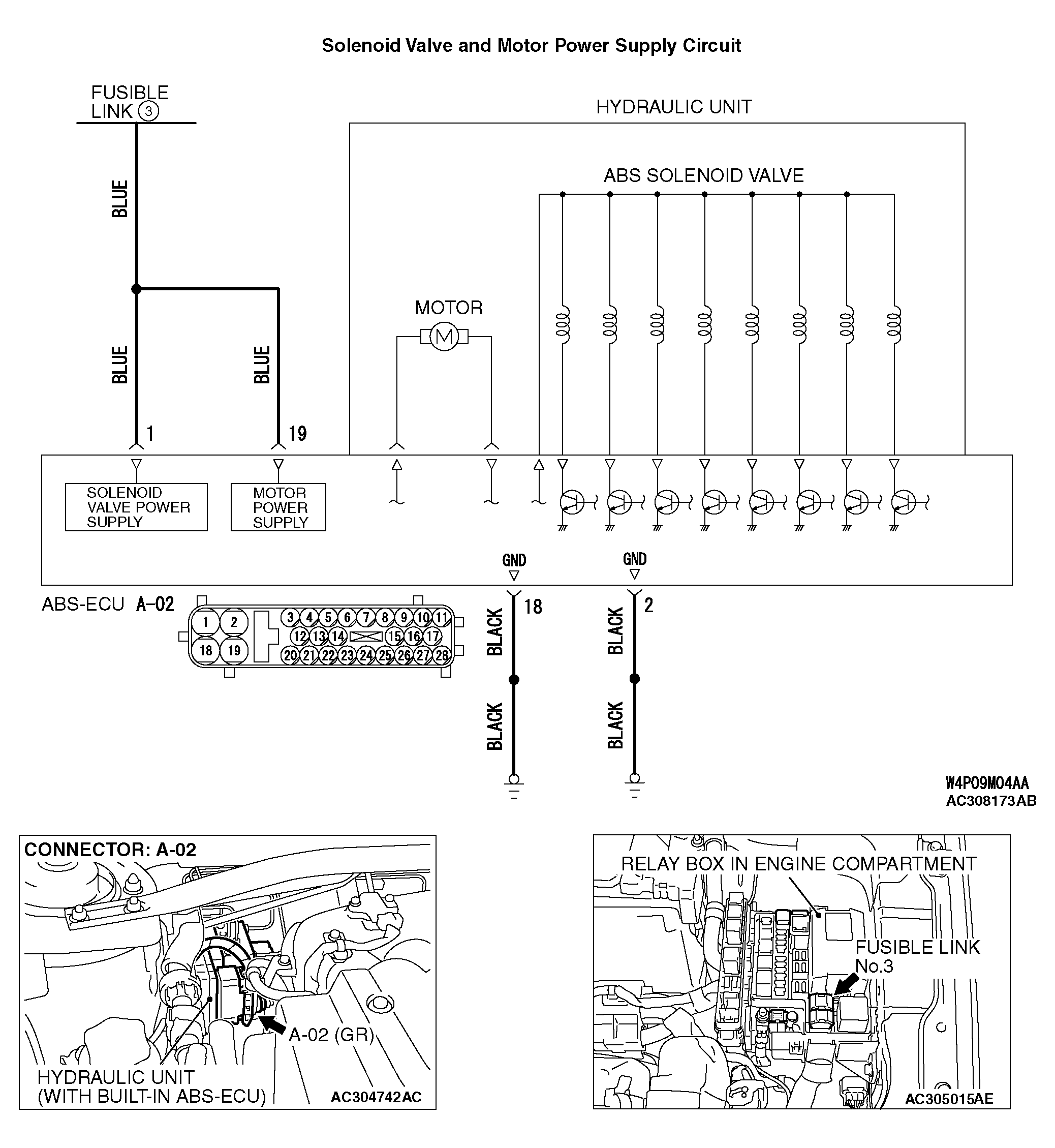

Fig 1: Identifying Solenoid Valve & Motor Power Supply Circuit Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

CAUTION: If there is any problem in the CAN bus lines, an incorrect diagnostic trouble code may be set. Prior to this diagnosis, diagnose the CAN bus lines.
