DTC C1201/C1206/C1211/1216: Wheel Speed Sensor (Abnormal Output Signal): Notes

WARNING: This page is about a different variant/trim than selected.

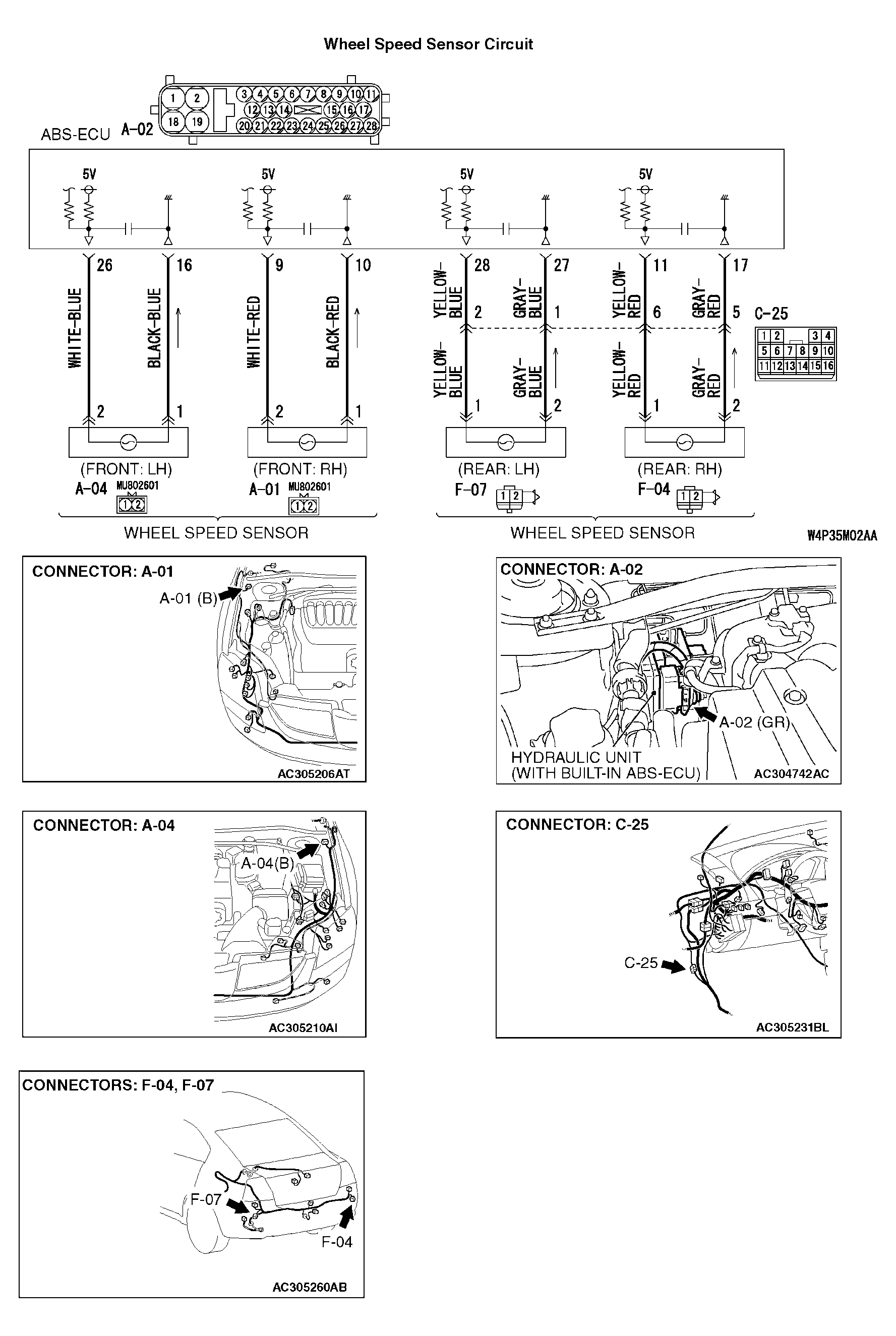

Fig 1: Identifying Wheel Speed Sensor Circuit Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

CAUTION: If there is any problem in the CAN bus lines, an incorrect diagnostic trouble code may be set. Prior to this diagnosis, diagnose the CAN bus lines.
