DTC C1200/C1205/C1210/1215: Wheel Speed Sensor (Open Circuit Or Short Circuit): Notes

WARNING: This page is about a different variant/trim than selected.

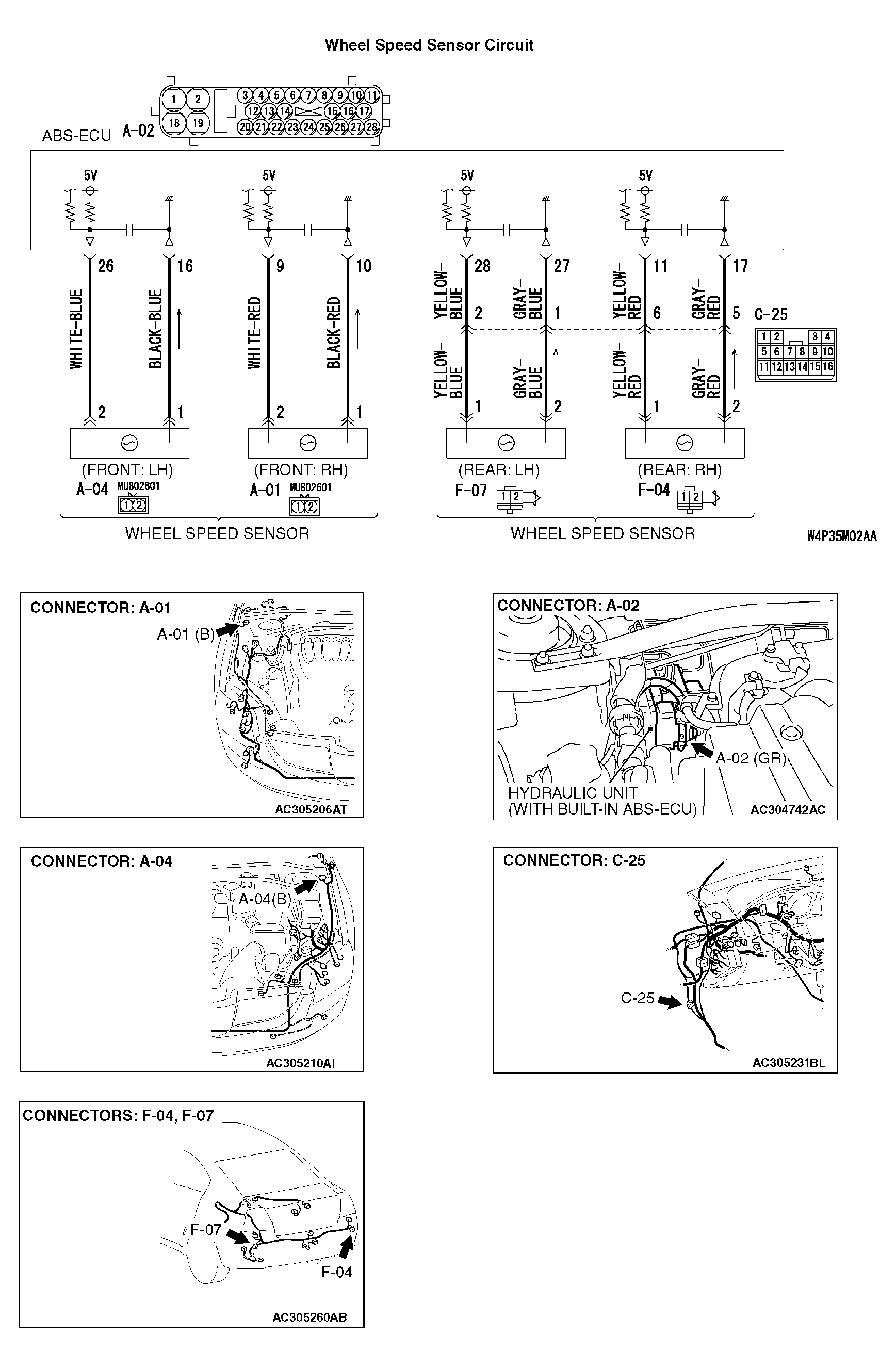

Fig 1: Identifying Wheel Speed Sensor Circuit Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

CAUTION: If there is any problem in the CAN bus lines, an incorrect diagnostic trouble code may be set. Diagnose the CAN bus lines before the DTC (Refer to DIAGNOSTIC TROUBLE CODE DIAGNOSIS ).
