Resistance And Continuity Between Harness-Side Connector Terminals
WARNING: This page is about a different variant/trim than selected.
Required Special Tool:
MB991970: ABS Check Harness
- Turn the ignition switch to the "LOCK" (OFF) position and disconnect the ABS-ECU connectors before checking resistance and continuity.
- Check the resistance and continuity between the terminals indicated in the table below.

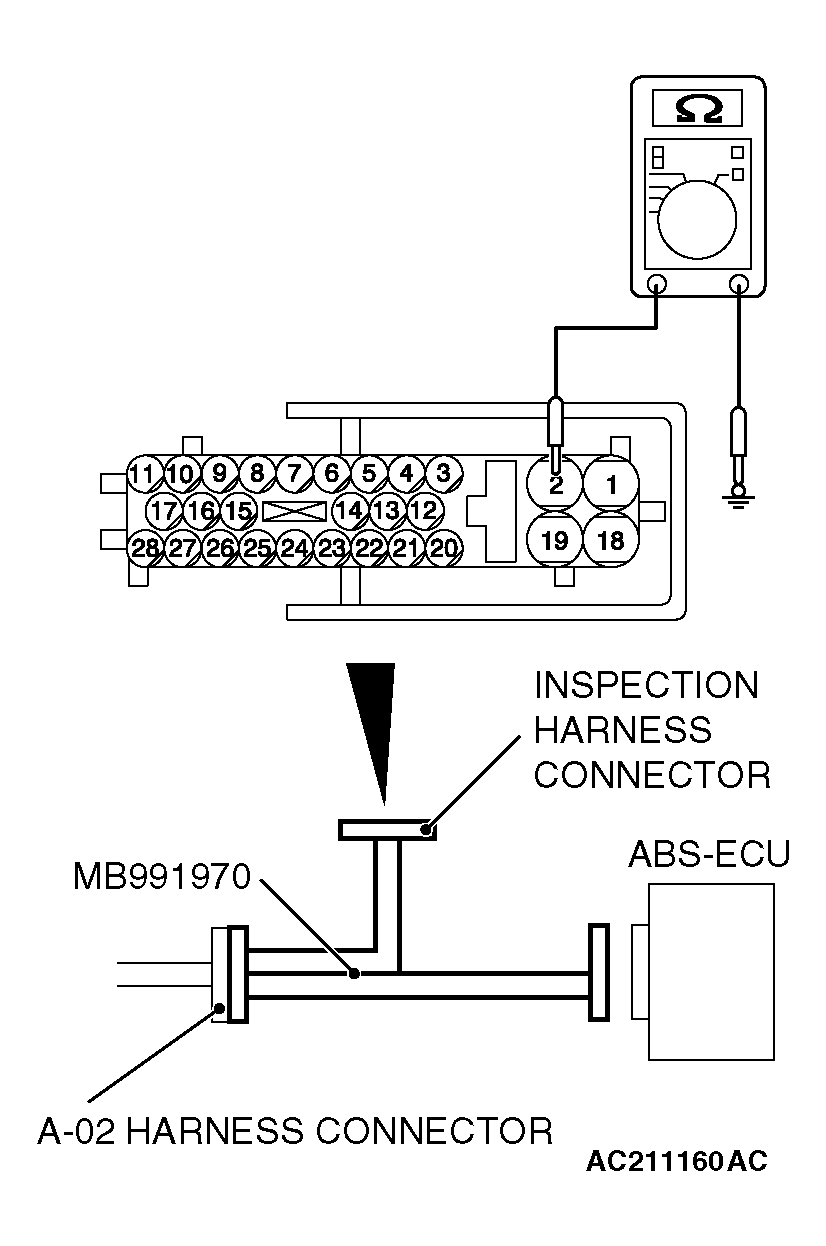

- The terminal layout is shown in the illustration.RESISTANCE AND CONTINUITY BETWEEN HARNESS-SIDE CONNECTOR TERMINALS CONDITION
CONNECTOR TERMINAL NO. SIGNAL NORMAL CONDITION 9 - 10 Front-right wheel speed sensor 1.24 - 1.64 kΩ 11 - 17 Rear-right wheel speed sensor 1.24 - 1.64 kΩ 16 - 26 Front-left wheel speed sensor 1.24 - 1.64 kΩ 27 - 28 Rear-left wheel speed sensor 1.24 - 1.64 kΩ 2 - body ground Ground Less than 2 ohms 18 - body ground Ground Less than 2 ohms
