Actuator Test Reference Table

WARNING: This page is about a different variant/trim than selected.

The scan tool activates the following actuators for testing.

NOTE: If the ABS-ECU runs down, actuator testing cannot be carried out.
NOTE: Actuator testing is only possible when the vehicle is stationary.

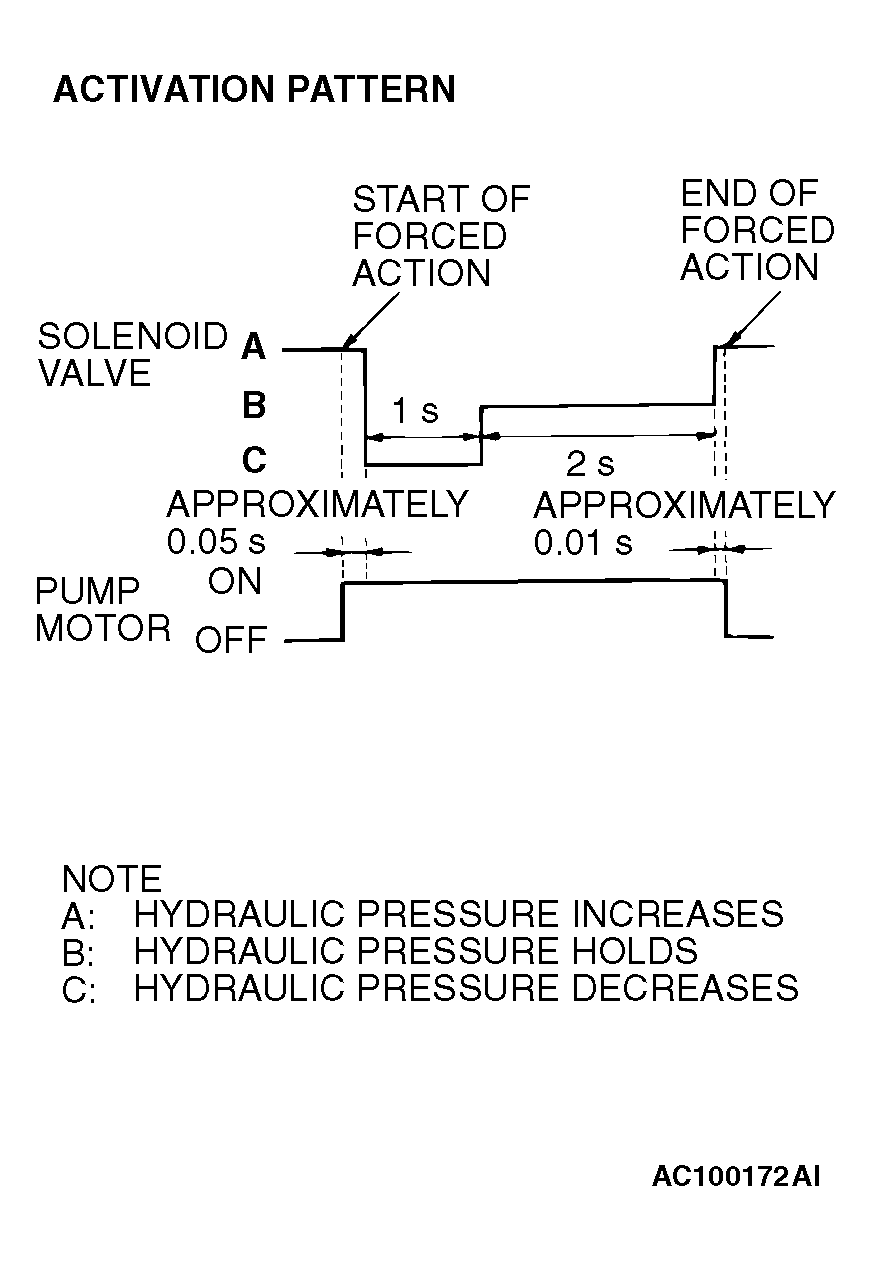

Fig 1: Identifying Activation Pattern
G04255429Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
