Inspection Procedure 5: When The TCL Switch Is Pushed On, TCL Does Not Cancel: Diagnosis

WARNING: This page is about a different variant/trim than selected.

Required Special Tools:

  1. STEP 1. Measure the terminal voltage at ABS/TCL-ECU connector A-02.
    Fig 1: Identifying ABS/TCL-ECU Connector A-02 Terminals
    G04253838Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
    1. Disconnect the ABS/TCL-ECU connector A-02.
    2. Connect special tool MB991970 between the ABS/TCL-EUC and the body-side harness connector.
    3. Turn the ignition switch to the "ON" position.
    4. Measure the terminal voltage between special tool MB991970 connector terminal 6 (ABS/TCL-ECU connector A-02 terminal 6) and ground.
      • When the TCL switch is not pressed, the voltage should measure battery positive voltage (approximately 12 volts).
      • When the TCL switch is pressed, the voltage should measure 1 volt or less.
    5. Turn the ignition switch to the "LOCK" (OFF) position.
    6. Disconnect special tool MB991970 between the ABS/TCL-ECU and the body-side harness connector.
    7. Connect the ABS/TCL-ECU connector A-02.

    Q: Is the terminal voltage battery terminal voltage when the TCL switch is not pressed, and is the terminal voltage 1 volt or less when the TCL switch is pressed?

    YES:  Go to  Step 6.

    NO:  Go to Step 2.

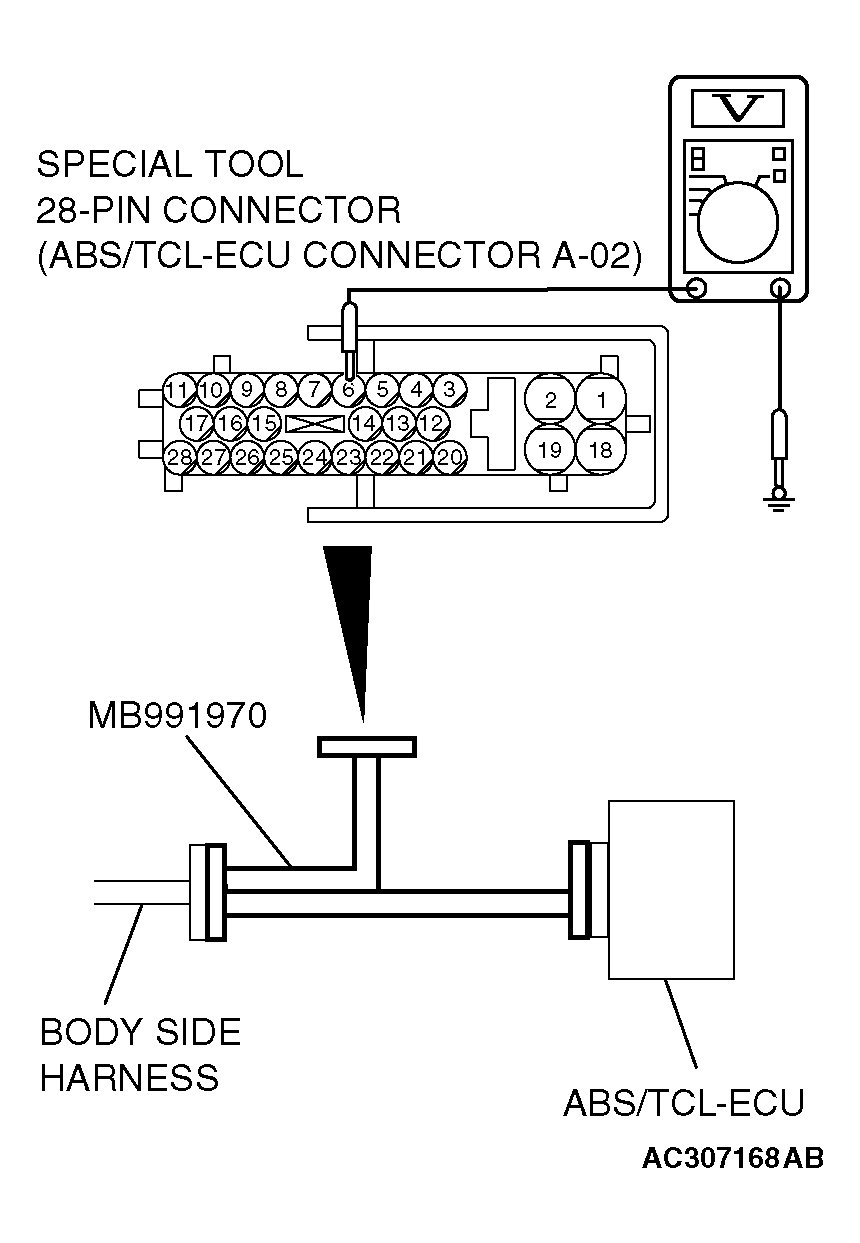

    Fig 2: Measuring Voltage Between Special Tool Connector Terminal No. 6 & Ground
    G04253839Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  2. STEP 2. Check the TCL switch.
    1. Remove the TCL switch. Refer to TCL SWITCH  .
    2. Connect an ohmmeter to the TCL switch between terminals 1 and 2.
    3. Check for continuity between terminals 1 and 2 when the TCL switch is operated.
      • There is no continuity between terminals 1 and 2 when the TCL switch is not pressed.
      • There is continuity between terminals 1 and 2 when the TCL switch is pressed.

    Q: Is there no continuity between terminals 1 and 2 when the TCL switch is not pressed, and is there continuity when the TCL switch is pressed?

    YES:  Install the TCL switch. Refer to TCL SWITCH  , then go to  Step 6.

    NO:  Replace the TCL switch. Refer to TCL SWITCH  , then go to  Step 7.

    Fig 3: Checking Continuity Between Terminals No. 1 & 2
    G04253840Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  3. STEP 3. Check ABS/TCL-ECU connector A-02, intermediate connector C-29 and TCL switch connectors C-131 for loose, corroded or damaged terminals, or terminals pushed back in the connector.

    Q: Are there connectors and terminals in good condition?

    YES:  Go to Step 4.

    NO:  Repair or replace the faulty connector. Refer to HARNESS CONNECTOR INSPECTION , then go to  Step 7.

    Fig 4: Identifying ABS/TCL-ECU Connector A-02 Terminals
    G04253841Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

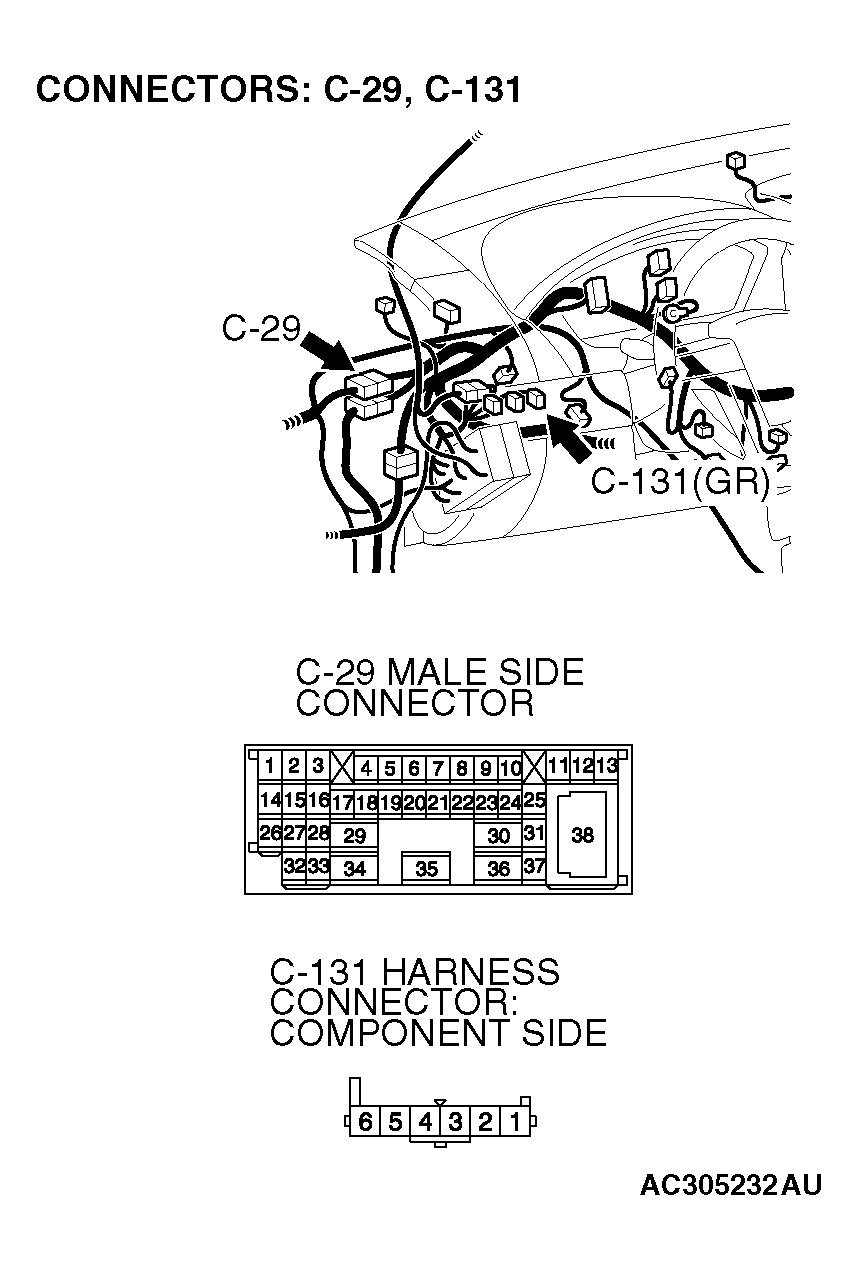

    Fig 5: Identifying Connector C-29 & C-131 Terminals
    G04253842Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  4. STEP 4. Check the harness wire between ABS/TCL-ECU connector A-02 terminal 6 and TCL switch connector C-131 terminal 1 for damage.

    Q: Are there harness wires in good condition?

    YES:  Go to Step 5.

    NO:  Repair the damaged harness wire. Then go to  Step 7.

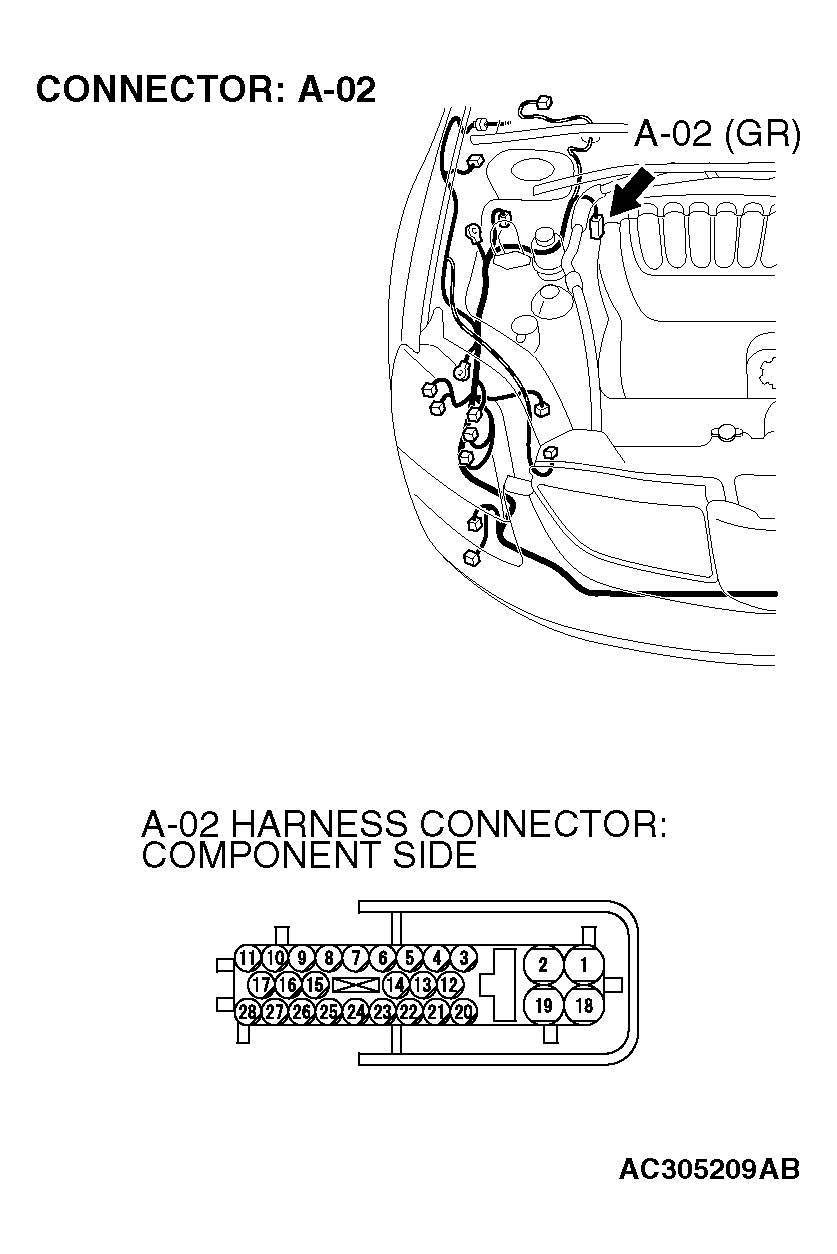

    Fig 6: Identifying Connector A-02 Terminals
    G04253843Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
    Fig 7: Identifying Connector C-131 Terminals
    G04253844Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  5. STEP 5. Check the harness wire between TCL switch connector C-131 terminal 2 and ground for damage.

    Q: Is the harness wire in good condition?

    YES:  Go to Step 6.

    NO:  Repair the damaged harness wire. Then go to  Step 7.

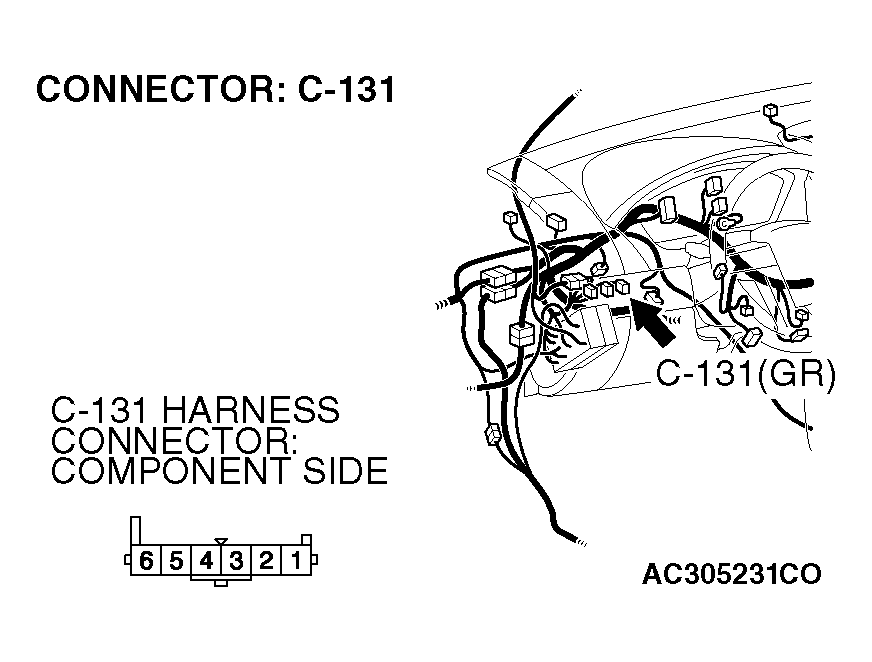

    Fig 8: Identifying Connector C-131 Terminals
    G04253845Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

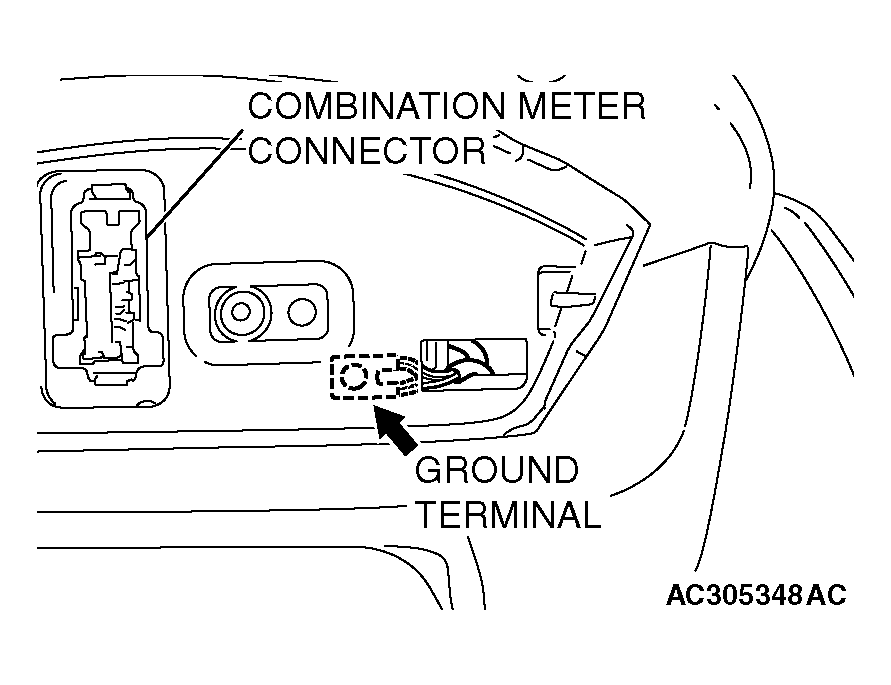

    Fig 9: Identifying Combination Meter Connector
    G04253846Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  6. STEP 6. Retest the system

    Q: Does TCL system cancelled, when the TCL switch is push on?

    YES:  It can be assumed that this malfunction is intermittent. Refer to HOW TO COPE WITH INTERMITTENT MALFUNCTION .

    NO:  Replace the hydraulic unit (integrated with ABS/TCL-ECU). Refer to HYDRAULIC UNIT , then go to Step 7.

  7. STEP 7. Retest the system

    Q: Does TCL system cancel, when the TCL switch is pushed on?

    YES:  The procedure is complete.

    NO:  Return to  Step 1.
