Step 4: Measure At Combination Meter Connector C-01 In Order To Check The Battery Circuit Of Power Supply System To The Combination Meter

1. Disconnect combination meter connector C-01, and measure at the wiring harness side.
2. Turn the ignition switch to "ON" position.
3. Measure the voltage between terminal No. 9 and ground. See Fig 1 . The measured value should be approximately 12 volts (battery positive voltage).

Does the measured voltage correspond with this range?

• YES

  Go to step 7  .
• NO

  Go to step 5  .

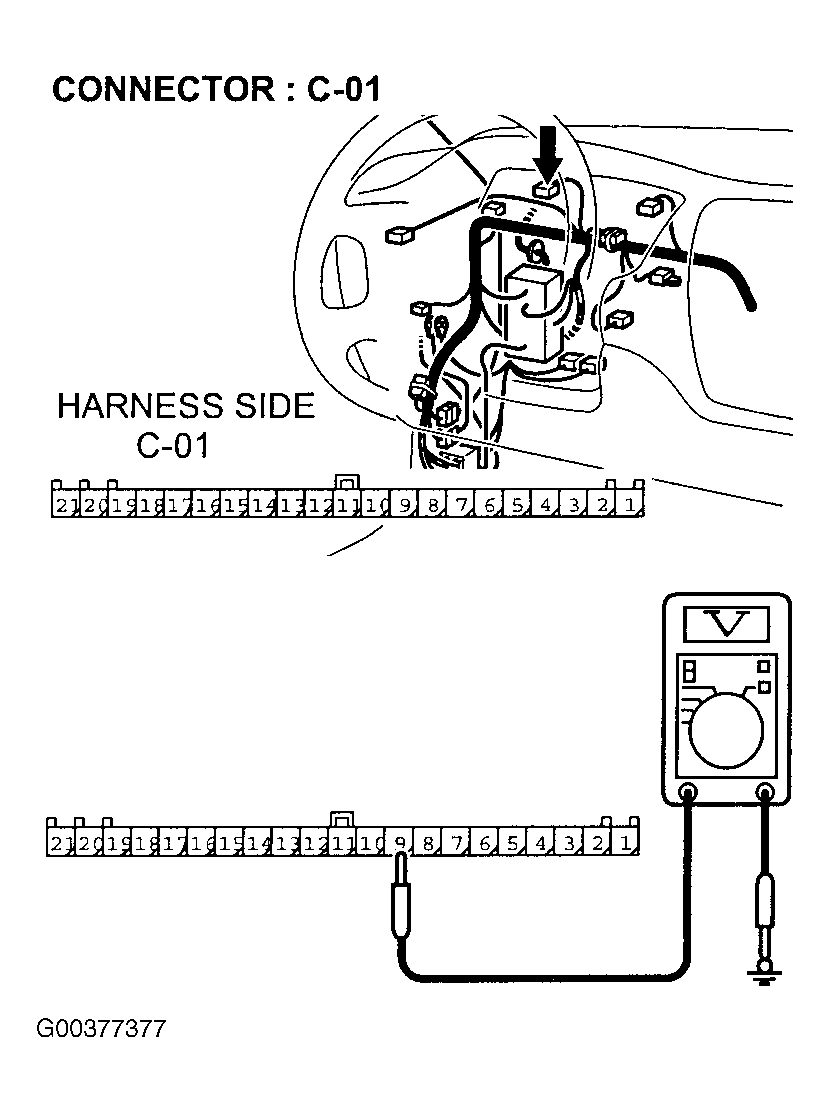

Fig 1: Measuring Voltage Between Connector C-01 Terminal No. 9 & Ground

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
