Step 8: Check The Fuel Gauge Unit

• Remove the fuel gauge unit from the fuel tank. See FUEL TANK  .
• Check resistance value between terminals No. 2 and 1 is at standard value when the fuel gauge unit float is at point "F" (highest) and point "E" (lowest). See Fig 1 .
• Check that the resistance value changes smoothly when the float moves slowly between point "F" (highest) and "E" (lowest).

Is the resistance 3-5 ohms (at point "F") and 110-112 ohms (at point "E")?

• YES

  Repair or replace the combination meter (printed-circuit board or fuel gauge assembly). The fuel gauge should work normally.
• NO

  Replace the fuel gauge unit. The fuel gauge should work normally.

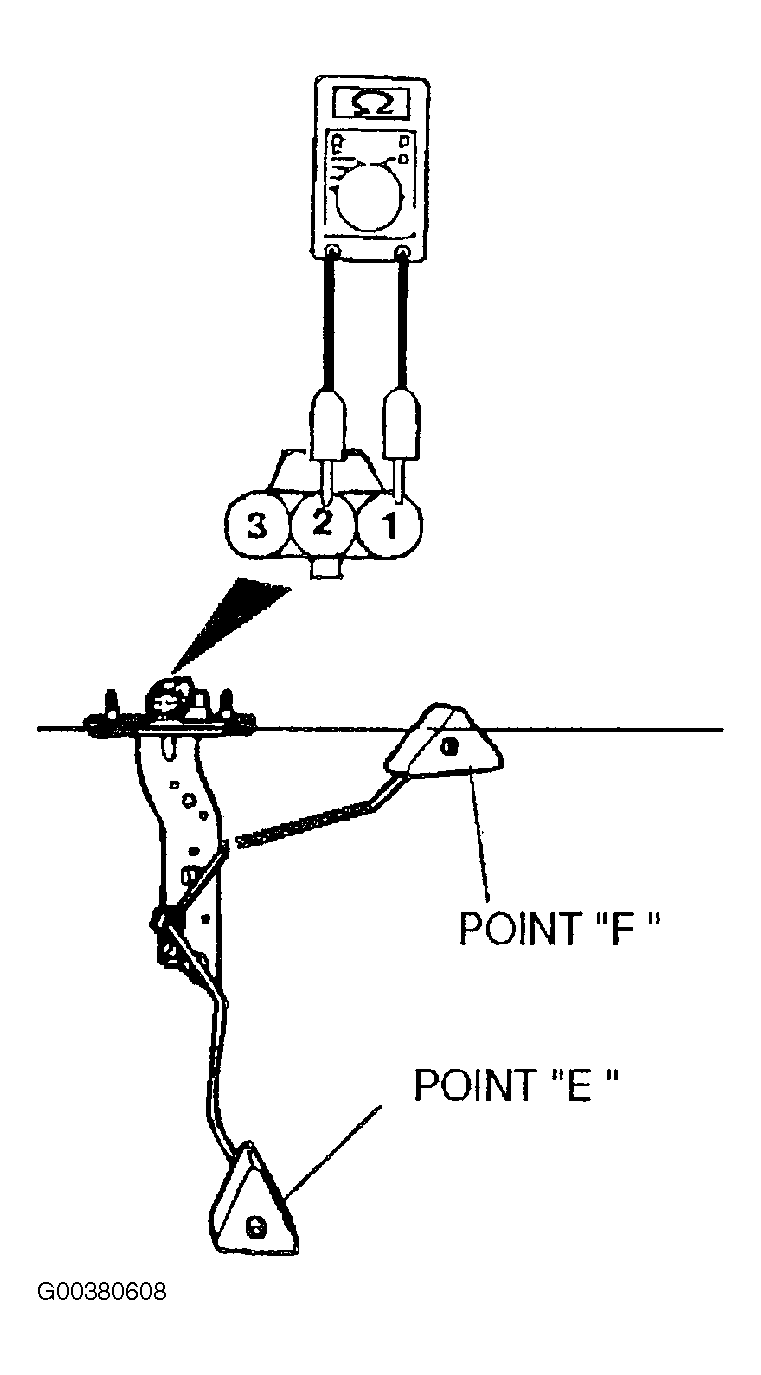

Fig 1: Measuring Fuel Gauge Resistance Between Terminals No. 2 & 1

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
