Fuel Tank

  1. Drain fuel.
  2. See FUEL LINE PRESSURE REDUCTION  .
  3. See TRANSMISSION MOUNT CENTER MEMBER ASSEMBLY  .
  4. Remove fuel tank. See Fig 1 .
  5. To install, reverse removal procedure.

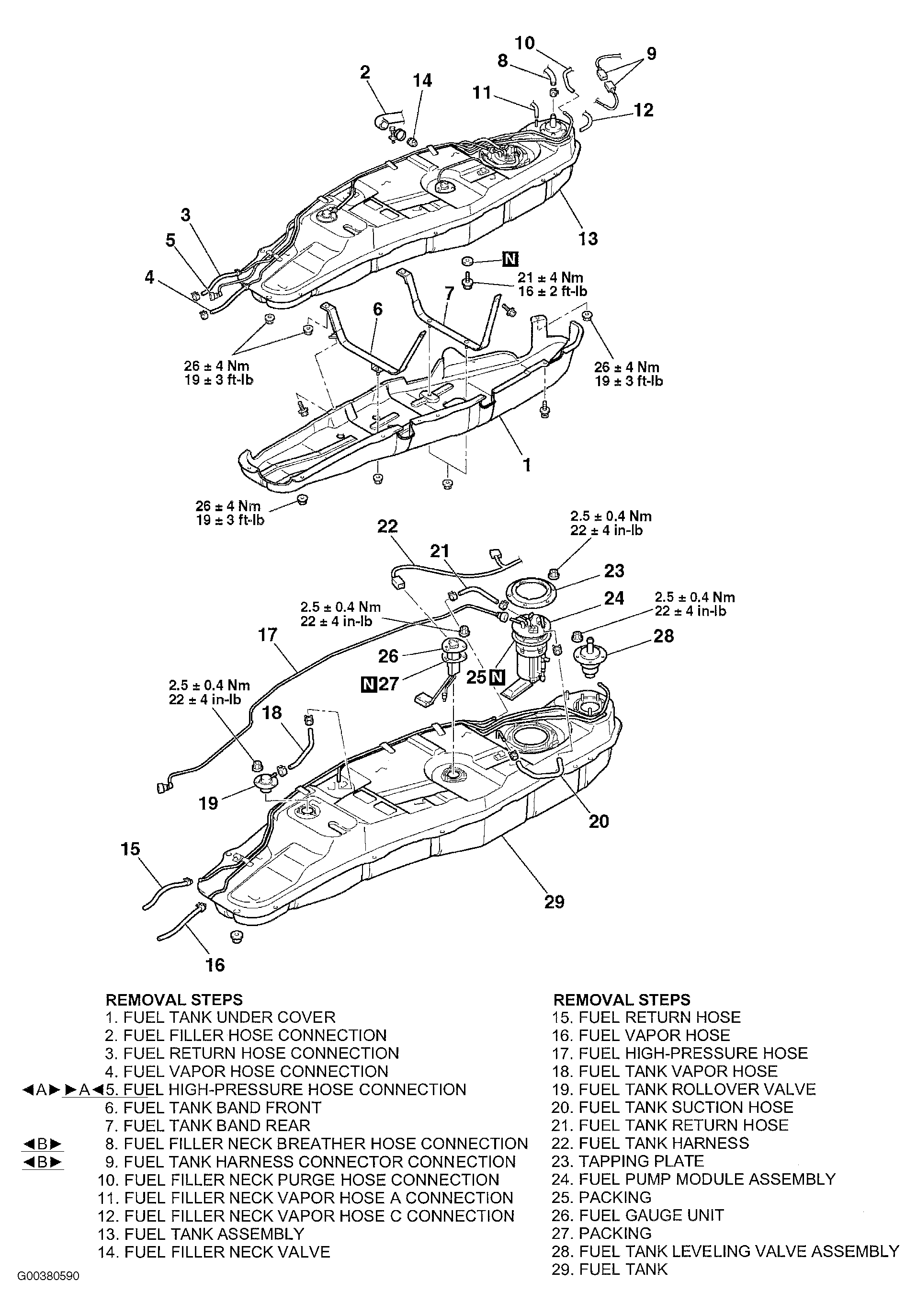

Fig 1: Removing & Installing Fuel Tank
G00380590Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
