Step 5: Check The Fuel Gauge Unit Ground Circuit At The Fuel Gauge Unit Connector G-03 By Backprobing

1. Do not disconnect the fuel gauge unit connector G-03.
2. Measure the resistance between terminal No. 1 and ground by backprobing. See Fig 1 .

Is the resistance less than 2 ohms?

• YES

  Go to step 8  .
• NO

  Go to step 6  .

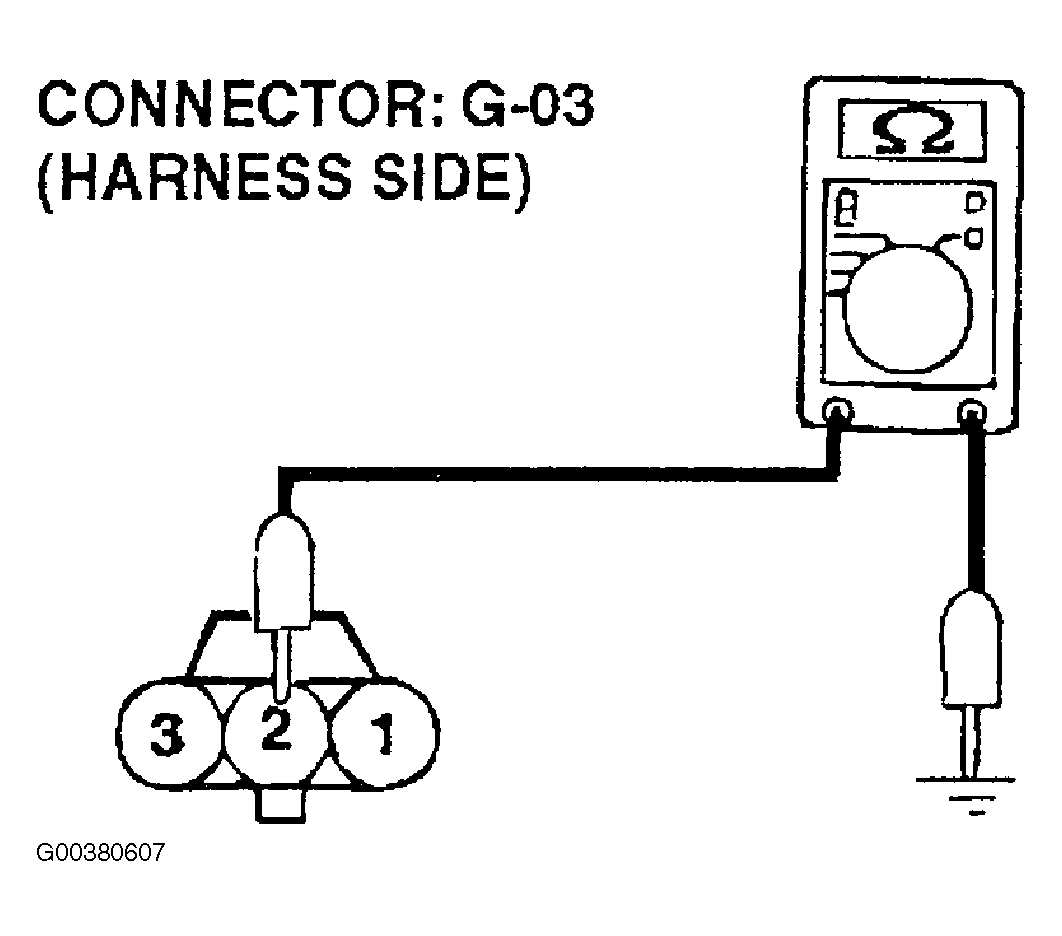

Fig 1: Measuring Resistance Between Connector G-03 Terminal No. 2 & Ground

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
