In-line plugs, 4-pin, System DFK ELA

Special tools required:

• 61 0 316

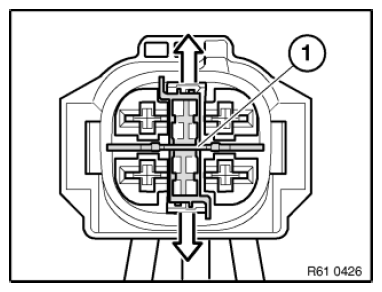

Press safety catch in arrow direction and remove lock (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Installation notes:

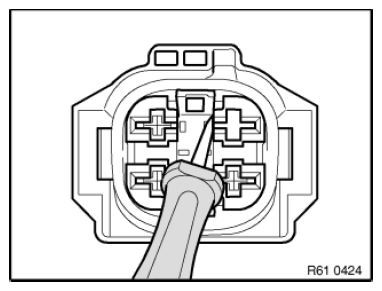

If necessary, side lock must also be unlocked with screwdriver.

Courtesy of BMW OF NORTH AMERICA, INC.

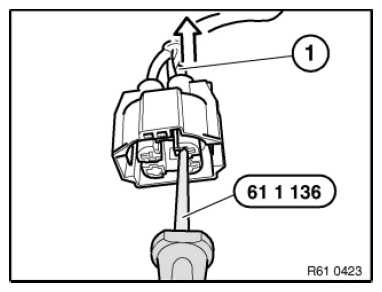

With special tool 61 0 316 (61 1 136), unlock contact and pull out cable with contact (1) towards rear.

Courtesy of BMW OF NORTH AMERICA, INC.
