Remove the automatic transmission (AISIN) GA8G45)

WARNING: Car may slip off the vehicle hoist where components are supported.
Danger! Immobilization period-threatening injuries!

Secure the vehicle hoist against lowering and lifting.
Make sure that the vehicle does not lift off the mounting plates on the vehicle lift.

WARNING: Car may slip off the vehicle hoist if the weight is distributed unevenly.
Danger! Immobilization period-threatening injuries!

Ensure there is a specific weight compensation on the car.

WARNING: Vehicle may slip off the vehicle hoist if the vehicle hoist is handled incorrectly.
Danger! Immobilization period-threatening injuries!

Observe safety instructions on raising the vehicle using a vehicle hoist.
For additional information see: 00... RAISE THE VEHICLE USING A VEHICLE LIFT .

Preliminary work

Refer to REMOVING THE ACOUSTIC COVER .
Refer to REMOVING INTAKE PORT .
Refer to REMOVING INTAKE SILENCER HOUSING .
Refer to REMOVING LEFT AND RIGHT WIPER ARM .
Refer to REMOVING REAR HOOD SEAL .
Refer to REMOVING LEFT WINDSHIELD PANEL COVER .
Refer to REMOVING RIGHT WINDSHIELD PANEL COVER .
Refer to REMOVING THE SECOND BULKHEAD AT TOP .
Refer to REMOVING BATTERY COVER .
Refer to REMOVING BATTERY .
Refer to MOVING THE ENGINE TO THE INSTALLATION POSITION .
Refer to DETACHING STEERING SHAFT AT BOTTOM FROM STEERING GEAR .
Refer to MOUNTING THE COOLANT RADIATOR ON THE LEFT AND RIGHT .
Refer to REMOVING THE FRONT LEFT AND RIGHT WHEELS .
Refer to IF INSTALLED: REMOVING REAR UNDERBODY PROTECTION .
Refer to REMOVING THE FRONT LEFT AND RIGHT WHEEL ARCH COVER .
Refer to DETACHING THE CABLE FOR THE RIDE HEIGHT SENSOR .
Refer to RELEASING THE LEFT AND RIGHT ANTI-ROLL BAR FROM THE ANTI-ROLL BAR LINK .
Refer to DETACHING RUBBER MOUNT FROM FRONT AXLE SUPPORT .
Refer to DISCONNECTING PLUG CONNECTIONS FROM STEERING GEAR .
Refer to DISCONNECTING THE PURGE AIR LINE .
Refer to RELEASING THE MOUNTED PARTS FROM THE FRONT AXLE SUPPORT .
Refer to COMPLETELY RELEASING AND REMOVING THE FRONT AXLE .
Refer to REMOVING STARTER MOTOR .
Refer to REMOVING LEFT OUTPUT SHAFT AT TRANSMISSION END AND HANGING UP .
Refer to REMOVING RIGHT OUTPUT SHAFT AT TRANSMISSION END AND HANGING UP .

CAUTION: Materials harmful to health.
Contact with fluids harmful to health!

Note and follow safety instructions on containers.
Conduct all work in appropriate personal protective equipment only.

NOTE: RISK OF DAMAGE
Damage to the engine block.
Serious damage to the engine block and transmission due to damaged and corroded screws.

It is imperative that protruding threads of the transmission bolts are checked for corrosion and damage prior to removal.
It is imperative that all rust is removed from corroded threads and that they are cleaned prior to removal.
Replace rusted and damaged bolts.

Remove E-box

Precondition

Battery ground lead is disconnected.

NOTE: RISK OF DAMAGE
Electrostatic discharge.
Damage to or destruction of electrical components.

Leave the electrical components in their original packaging until they are being installed. Only use the original packaging for returning the product. Always package removed components straight away.
Read and comply with user information on using the associated special tool 12 7 060.
Only tap the housings of electrical components. Do not tap pins or multi-pin connectors directly.
Wear electrically conductive clothing and antistatic shoes (with ESD symbol).
For additional information see: 61 35... NOTES ON ESD (ELECTROSTATIC DISCHARGE) PROTECTION

NOTE: RISK OF DAMAGE
Damage to wires when disconnecting connectors and plug connections.
Sheared wires can cause a short circuit.

Do not pull on wires when disconnecting connectors and plug connections.

Detach positive battery terminal (1).
Guide out the battery positive terminal (1) and place to the side.
Guide the positive battery cable (2) out of the holder (3) and lay to one side.

Courtesy of BMW OF NORTH AMERICA, INC.
Loosen screw (1).
Unlock the cover (2) and feed out of the guides (3) in the direction of the arrow and remove.

Courtesy of BMW OF NORTH AMERICA, INC.
Guide out and remove plug connection (1) from E-Box (2) in the arrow direction.
Unlock plug connection (1) and disconnect.

Courtesy of BMW OF NORTH AMERICA, INC.
Unlock and release plug connections (1) in the arrow direction.
Feed out connector (1) and place to one side.

Courtesy of BMW OF NORTH AMERICA, INC.
Unlock plug connections (1) and disconnect.

Courtesy of BMW OF NORTH AMERICA, INC.
Thread out positive battery cable (1) and set it aside.
Unlock lock (2).
Guide out wiring harness section (3) for the injectors and the ignition coils in the arrow direction and set aside.

Courtesy of BMW OF NORTH AMERICA, INC.
Unlock the locks (1).
Feed out the wiring harness section (2) for the Valvetronic servomotor in the direction of the arrow and set aside.

Courtesy of BMW OF NORTH AMERICA, INC.
Unlock the locks (1).
Feed out the wiring harness section (2) for the engine in arrow direction and set aside.

Courtesy of BMW OF NORTH AMERICA, INC.
Unlock and loosen holder (1).
Thread the holder (1) in direction of arrow out of the E-box (2) and set aside.

Courtesy of BMW OF NORTH AMERICA, INC.
Loosen screw (1).

Courtesy of BMW OF NORTH AMERICA, INC.
Thread E-box (1) in direction of arrow out of the guide (2) and remove.

Courtesy of BMW OF NORTH AMERICA, INC.

Remove battery carrier
Detach cable clip (1) from battery carrier (5).
Detach coolant line (2) from battery carrier (5).
Loosen screws (3).
Loosen screw (4).
Feed out battery carrier (5) and remove.

Courtesy of BMW OF NORTH AMERICA, INC.
Loosen screw (1).
Loosen the ground strap (2) from the transmission and lay to one side.

Courtesy of BMW OF NORTH AMERICA, INC.
Unlock plug connection (1) and disconnect.
Release clamps (2) from the transmission with wiring harness (3) and set them aside.

Courtesy of BMW OF NORTH AMERICA, INC.
Version A:

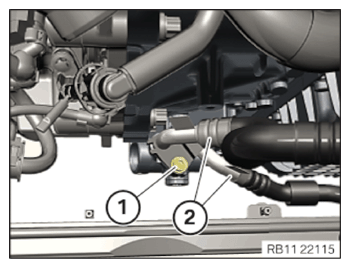

Release the hose clamps (1).

Disconnect coolant hoses (2) from transmission oil cooler (3).

Catch and dispose of escaping coolant.

Courtesy of BMW OF NORTH AMERICA, INC.
Version B:
Release locks (1).

Disconnect coolant hoses from transmission oil cooler.

Catch the emerging coolant.

Courtesy of BMW OF NORTH AMERICA, INC.
Version C:
Release screw (1).

Unlock and loosen transmission oil lines (2).

Collect and dispose of the leaked transmission oil.

Courtesy of BMW OF NORTH AMERICA, INC.
Loosen screws (1).

Courtesy of BMW OF NORTH AMERICA, INC.
Crank engine with special tool 0 493 380 (11 6 480) at vibration damper in direction of rotation.
Release the nut (1) on the torque converter.
Crank engine further and release remaining 5 nuts.

Courtesy of BMW OF NORTH AMERICA, INC.
Support the transmission using special tools 0 490 133 (00 2 030) and 0 495 827 (23 4 150) .
Secure the transmission with the luggage strap (3).

Courtesy of BMW OF NORTH AMERICA, INC.

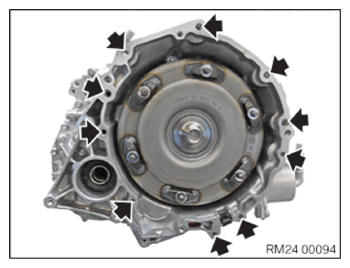

Loosen the screws (arrows) and remove the transmission.

Courtesy of BMW OF NORTH AMERICA, INC.
