Install clean air pipe

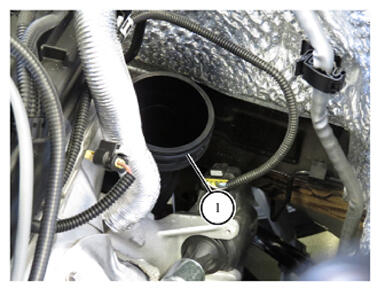

• Replace sealing ring (1)  .

  Parts:  Sealing ring

  Courtesy of BMW OF NORTH AMERICA, INC.

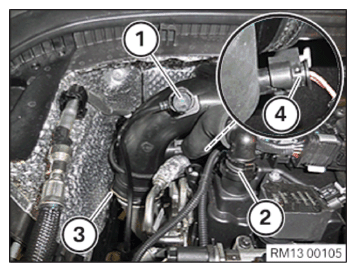

• Insert and position clean air pipe.
• Connect and lock the connector (4)  .

  The connector (4)  must engage audibly.

• Connect engine ventilation line (1)  on clean air pipe and lock.
• Connect engine ventilation line (2)  to the cylinder head cover and lock.

  The engine ventilation lines (1)  and (2)  must snap-in audibly.

  Courtesy of BMW OF NORTH AMERICA, INC.

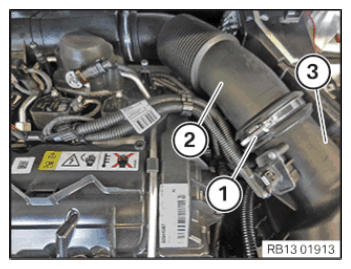

• Feed in clean air pipe (2)  on the intake filter housing (3)  and install.
• Tighten clamp (1)  .
  TIGHTENING TORQUES SPECIFICATIONS



  Clean air pipe to intake silencer housing
  Screw clamp	Tightening torque	3 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

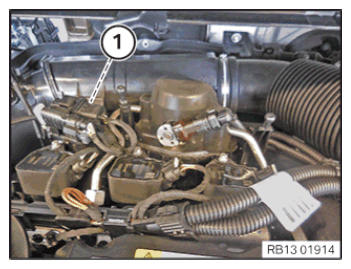

• Tighten down screw (1)  .

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING ACOUSTIC COVER .
• Refer to INSTALLING SECOND UPPER FIREWALL .
• Refer to INSTALLING THE RIGHT WINDSHIELD PANEL COVER .
• Refer to INSTALLING THE BATTERY COVER .
• Refer to INSTALLING THE LEFT WINDSHIELD PANEL COVER .
• Refer to INSTALLING THE REAR HOOD SEAL .
• Refer to INSTALLING LEFT AND RIGHT WIPER ARM .
