41 33 731 REPLACE THE SUPPORT FOR THE RIGHT CROSS CONNECTION (DEFORMATION ELEMENT REMOVED) REP-REP-RAF6041-4133731 - V.1 (Countryman 2017-2023, except PHEV)

Read contents of BODY, GENERAL .

For stripping and rebuilding operations, see the surrounding texts on KSD CD (FRU number 41 33 731).

Necessary preliminary work

• Remove STRUT BRACE .
• Remove right headlight. Refer to 63 12 143 REMOVING AND INSTALLING (REPLACING) RIGHT HEADLIGHT WITH LED TECHNOLOGY REP-REP-RAF6063-6312143 - V.2 (Countryman 2017-2023, except PHEV) .
• Remove CROSS CONNECTION .

Removal

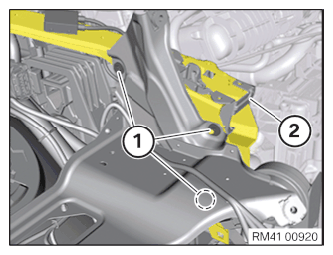

Release screw and nuts (1).

Feed the hood lock (2) through the support of the cross connection.

Courtesy of BMW OF NORTH AMERICA, INC.

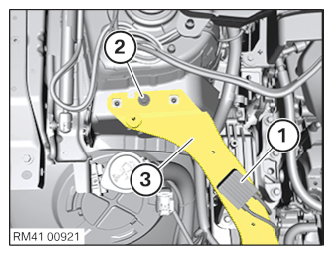

Release the deflection (1) for the Bowden cable from the support for the cross connection.

Release the screw (2) and remove the support of the cross connection (3).

Courtesy of BMW OF NORTH AMERICA, INC.

Installation

Observe the "PROCEDURE FOR FRONT PANEL INSTALLATION ".

Install the support (3) for the cross connection.

Tighten screw (2). Tightening torque 41 33 6AZ .

Fit the deflection (1) for the Bowden cable on the cross connection support.

Courtesy of BMW OF NORTH AMERICA, INC.

Join the screw and nuts (1) and tighten. Tightening torque 41 33 5AZ .

Feed the hood lock (2) through the support of the cross connection.

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

• Install CROSS CONNECTION .
• Install the right headlight. Refer to 63 12 143 REMOVING AND INSTALLING (REPLACING) RIGHT HEADLIGHT WITH LED TECHNOLOGY REP-REP-RAF6063-6312143 - V.2 (Countryman 2017-2023, except PHEV) .
• Install STRUT BRACE .
