Install the integrated power supply module (PDM)

NOTE: RISK OF DAMAGE
Improper routing of cables and wiring harnesses.
Trapped, crushed or damaged cables may cause short circuits and malfunctions.

Route all cables without abrasions, do not trap and crush.

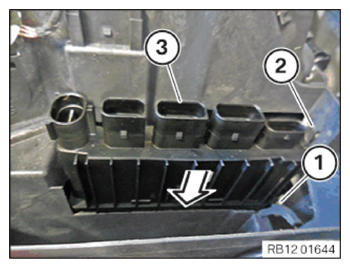

Insert and install the integrated power supply module (3) in the direction of the arrow.
Ensure that the locks (1) and (2) engage audibly.

G15148133

Courtesy of BMW OF NORTH AMERICA, INC.

Connect and lock the connector (1).
Make sure the connectors (1) engage audibly.

G15148131

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

Refer to INSTALLING THE DME CONTROL UNIT .
Refer to INSTALLING THE TENSION STRUT .
Refer to INSTALLING INTAKE SILENCER HOUSING .
Refer to INSTALLING INTAKE PORT .
Refer to INSTALLING THE STRUT BRACE .
Refer to INSTALLING THE UPPER BULKHEAD COVER PANEL .
Refer to INSTALLING FRONT WINDSHIELD PANEL COVER .
Refer to INSTALLING THE FRONT HOOD SEAL AT THE REAR .
Refer to CONNECTING ALL BATTERY GROUND LEADS .
