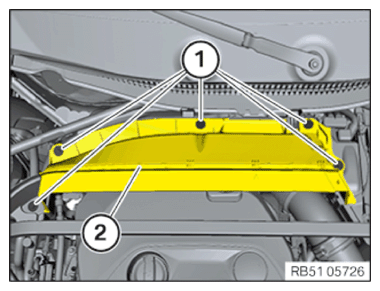

Install the upper bulkhead cover panel
- Guide in and Install the upper bulkhead cover panel (2) .
- Tighten the screws (1)
.TIGHTENING TORQUE SPECIFICATIONS

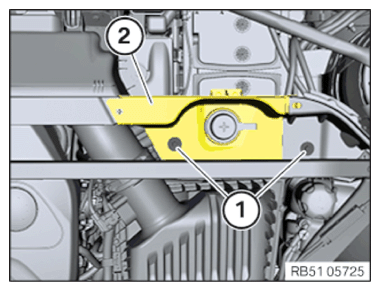

Cowl cover, top screw Tightening torque 2.6Nm - Guide in and install cover (2) .
- Tighten down screw (1)
.TIGHTENING TORQUE SPECIFICATIONS
Cover of remote positive terminal screw Tightening torque 2.6Nm
