41 33 730 REPLACE THE SUPPORT FOR THE LEFT CROSS CONNECTION (DEFORMATION ELEMENT REMOVED) REP-REP-RAF6041-4133730 - V.1 (Countryman 2017-2023, except PHEV)
Read contents of BODY, GENERAL .
For stripping and rebuilding operations, see the surrounding texts on KSD CD (FRU number 41 33 730).
Necessary preliminary work
- Remove STRUT BRACE .
- Remove "left headlight. Refer to 63 12 003 REMOVING AND INSTALLING LEFT HEADLIGHT REP-REP-RAF6063-6312003 - V.4 (Countryman 2017-2023, except PHEV) ".
- Remove CROSS CONNECTION .
Removal

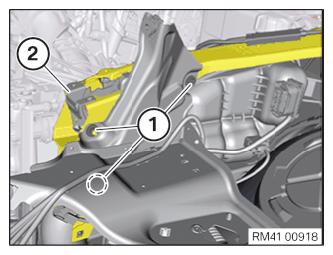

Release screw and nuts (1).
Feed the hood lock (2) through the support of the cross connection.

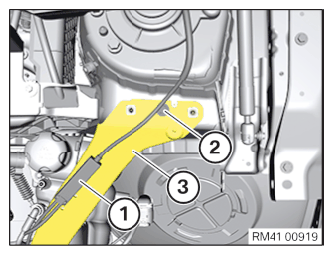

Release clutch (1) for the Bowden cable from the support for the cross connection.
Release the screw (2) and remove the support of the cross connection (3).
Installation
Observe the "PROCEDURE FOR FRONT PANEL INSTALLATION ".
Install the support (3) for the cross connection.
Tighten screw (2). Tightening torque 41 33 6AZ .
Fit the clutch (1) for the Bowden cable on the cross connection support.
Join the screw and nuts (1) and tighten. Tightening torque 41 33 5AZ .
Feed the hood lock (2) through the support of the cross connection.
Required follow-up work:
- Remove CROSS CONNECTION .
- Install "left headlight. Refer to 63 12 003 REMOVING AND INSTALLING LEFT HEADLIGHT REP-REP-RAF6063-6312003 - V.4 (Countryman 2017-2023, except PHEV) ".
- Remove STRUT BRACE .
