Insert the side window glass (replacement)

NOTE: TECHNICAL INFORMATION
Bonding surfaces must be dry and free of dust and grease. After the adhesive area has been cleaned, it must no longer be taped with bare hands.

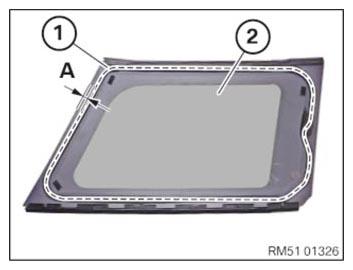

Clean the bonding surfaces (1) on the side window (2) in the area (A).
Check Velcro fastener (Dual Lock tape) and retrofit as needed.

Courtesy of BMW OF NORTH AMERICA, INC.

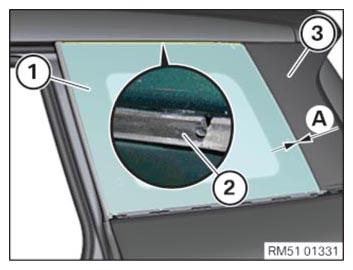

Insert the side window glass (1) and align it with the body.
The seal (2) must rest evenly and parallel to the roof.

The side window (1) must not rest in the area (A) on the trim (3).
Engage the side window (1) in the Velcro fastener (Dual Lock tape).
Fix the side window (1) with the yellow plastic adhesive tape.

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

Refer to INSTALLING THE TRIM ON THE SIDE WINDOW GLASS ON THE LEFT OR RIGHT .
Refer to INSTALLING LEFT OR RIGHT D-PILLAR TRIM PANEL .
Refer to INSTALLING THE LEFT OR RIGHT C-PILLAR TRIM PANEL .
Refer to INSTALL THE STRIP ON THE BOTTOM REAR SIDE WINDOW GLASS .
