61 31 544 Replacing roof switch cluster (Countryman 2017-2023, except PHEV)

IMPORTANT: Read and comply with notes on protection against electrostatic damage (ESD PROTECTION ).

Preliminary work needed:

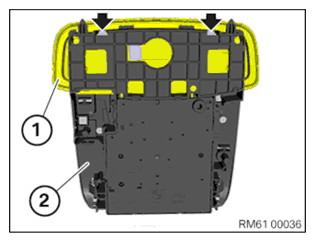

Release interior roof lights (1) at clamps.

Feed out interior roof lights (1) from roof switch cluster (2) and join in new part.

NOTE: Clamps must not be missing or damaged.
Make sure interior roof light (1) is correctly fitted in roof switch cluster (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:
