61 31 043 Remove and install roof switch center (Countryman 2017-2023, except PHEV)

Special tools required:

00 9 325

IMPORTANT: Follow instructions for handling light bulbs (INTERIOR LIGHTING ).

IMPORTANT: Read and comply with notes on protection against electrostatic damage (ESD PROTECTION ).

Removal:

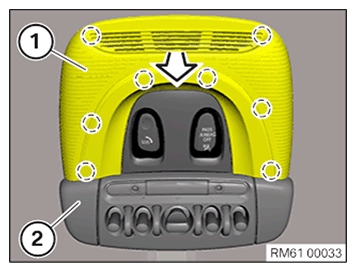

Carefully unclip the trim (1) with the special tool 00 9 325.

Remove the roof switch cluster (2).

G11649832

Courtesy of BMW OF NORTH AMERICA, INC.

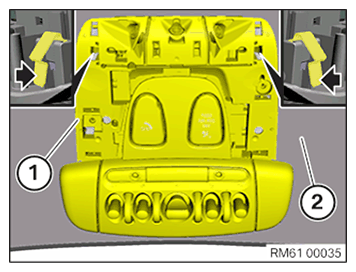

Unlock detents on both sides with screwdriver.

Remove roof switch cluster (1) from headlining (2).

Unlock and disconnect connector on rear of roof switch cluster (1).

G11649833

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Connect plug on rear of roof switch cluster (1).

Join roof switch cluster (1) in headlining (2).

NOTE: Ensure roof switch cluster (1) is correctly fitted and engaged.

G11649833

Courtesy of BMW OF NORTH AMERICA, INC.

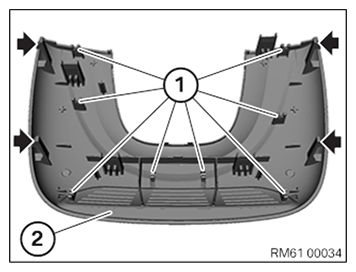

NOTE: Guides and retaining lugs (1) on cover (2) must not be damaged or missing.

G11649835

Courtesy of BMW OF NORTH AMERICA, INC.

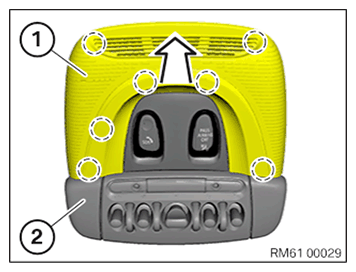

Carefully join and clip in the trim (1) on the roof switch cluster (2).

NOTE: Ensure cover (1) is correctly fitted and engaged on roof switch cluster (2).

G11649836

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Disconnecting the plug connection for the SOS emergency call button results in fault entries in the telephone control unit (restriction in the emergency call system).
After installation, read out fault memory and if necessary delete fault code entry.
