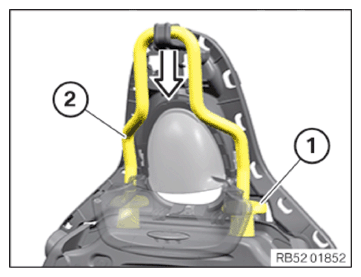

Installing the head restraint

• Correctly position the head restraint (2).
• Press the locks (1) and install the head restraint (2) in arrow direction.

  Courtesy of BMW OF NORTH AMERICA, INC.

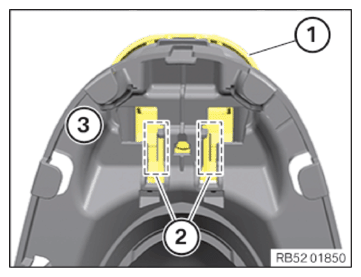

• Correctly position impact plate (1) on the support (3).
• Clip in impact plate (1) in the marked areas (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

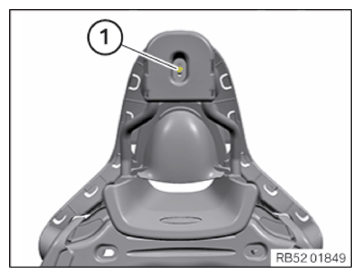

• Tighten down screw (1).
  TIGHTENING TORQUES SPECIFICATION



  Impact plate to support
  Screw	Tightening torque	2.2 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE TRIM AT THE BOTTOM OF THE APERTURE .
• Refer to INSTALLING THE REAR PANEL ON THE FRONT SEAT BACKREST .
