Removing the cushion
Preliminary work
- Refer to REMOVING THE FRONT STRAP FITTING .
- Refer to REMOVING FRONT SEAT .
- Refer to REMOVING INNER COVER .
- Refer to REMOVING THE COVER FOR BACKREST ADJUSTMENT .
- Refer to REMOVING THE STEERING LEVER FOR BACKREST ADJUSTMENT .
- Refer to REMOVING THE LEVER FOR SEAT HEIGHT ADJUSTMENT .
- Refer to REMOVING THE OUTER COVER ON THE FRONT SEAT .
- Refer to REMOVING THE THIGH SUPPORT ON THE FRONT SEAT .
- Refer to REMOVING SEAT COVER WITH CUSHION .

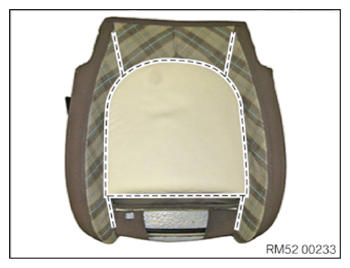

- Release all the clamps on the marked trim wires.
- Remove the seat cover from the upholstery.
- Remove any remaining clamp from the seat cover and the upholstery.
