Removing and installing/replacing instrument panel trim, bottom right (Cooper Convertible)

Removal  :

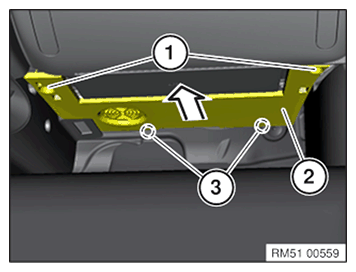

Unscrew the screws (1).

Lower trim panel (2) slightly and disconnect plug connections behind it.

Pull out the trim panel (2) from the guides (3).

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement (depending on version):

Remount LOUDSPEAKER .

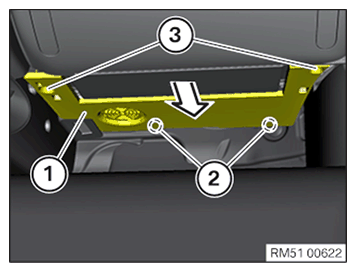

• Feed in the trim panel (1) in the guides (2).
• Connect the plug connection behind it.
• Set the trim panel (1) upwards and tighten the screws (3).
  TIGHTENING TORQUE SPECIFICATION



  Bottom trim panel to bracket
  Screw
  	tightening torque
  	2.4 Nm

Installation  :

Engage the trim panel (1) in the guides (2).

Connect plug connections.

Tighten down screws (3).

Courtesy of BMW OF NORTH AMERICA, INC.
