Replacing the rear bumper cover

NOTE: TECHNICAL INFORMATION
The gap dimensions form the basis for these repair instructions and must be observed without fail.
For additional information see: BODY GAP DIMENSIONS (COOPER 4-DOOR HATCHBACK, 2020-2023)

Preliminary work

Refer to REMOVING THE DIFFUSER .
Refer to REMOVING THE LEFT AND RIGHT TAIL LIGHTS .
Refer to REMOVING REAR BUMPER PANEL .

Remount cover for towing eye (1) on the left and right.

Courtesy of BMW OF NORTH AMERICA, INC.

Install the center spoiler on the rear bumper panel

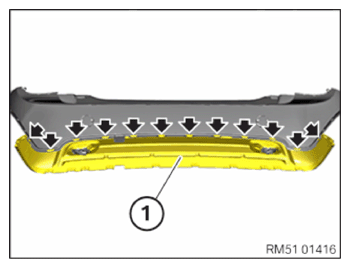

Release the center spoiler (1) at the detents (arrows) and remove.

Courtesy of BMW OF NORTH AMERICA, INC.

Replace the rear bumper cover.
Parts: Bumper cover, rear

Install the center spoiler on the rear bumper panel

Attach center spoiler (1) lock into detents (arrows).

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

Refer to INSTALLING THE REAR BUMPER COVER .
Refer to INSTALLING THE LEFT AND RIGHT TAIL LIGHTS .
Refer to INSTALLING THE DIFFUSER .
