Remove rear bumper panel
NOTE:
TECHNICAL INFORMATION
The gap dimensions form the basis for these repair instructions and must be observed without fail.
For additional information see: BODY GAP DIMENSIONS (COOPER 4-DOOR HATCHBACK, 2020-2023)
The gap dimensions form the basis for these repair instructions and must be observed without fail.
For additional information see: BODY GAP DIMENSIONS (COOPER 4-DOOR HATCHBACK, 2020-2023)
Preliminary work
- Refer to REMOVING THE DIFFUSER .
- Refer to REMOVING THE LEFT AND RIGHT TAIL LIGHTS .
- Loosen screws (1) left and right.

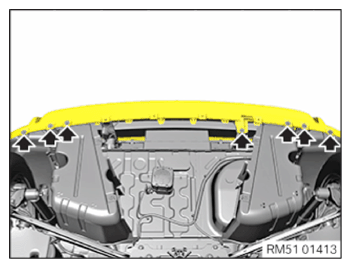

- Release all bolts (arrows).

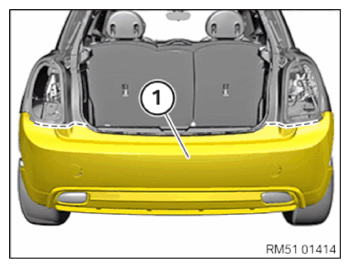

- Release the bumper cover (1) from the detents in dashed line area.
- Remove the bumper cover (1) with the help of a support person.
- Unlock and disconnect the plug connections for the rear fog lights and/or ultrasonic sensors.
