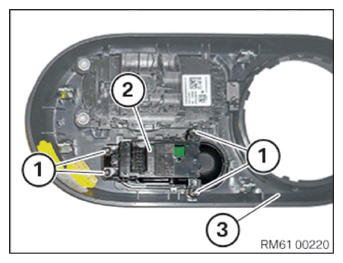

Installing the parking brake button

• Position the parking brake button (2)  in the center console trim (3)  .
• Tighten down screws (1)  .
  TIGHTENING TORQUES SPECIFICATION



  Parking brake button on center console trim
  Screw TS5x12	tightening torque	1.5 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE CENTER CONSOLE TRIM .
• Refer to CONNECTING BATTERY GROUND LEAD .
• Refer to ACTIVATING HIGH-VOLTAGE SYSTEM .
• Refer to INSTALLING THE COVER OF THE HIGH-VOLTAGE SAFETY PLUG .
