Replacement of the windshield washer pump

Preliminary work

• Refer to REMOVING FRONT WHEEL .
• Refer to REMOVING FRONT WHEEL ARCH COVER .
• Refer to REMOVING WASHER FLUID RESERVOIR .

Remove windshield washer pump

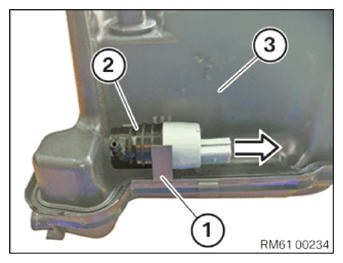

• Release the detent (1).
• Pull out the window washer pump (2) from the washer fluid reservoir (3) in arrow direction.

  Courtesy of BMW OF NORTH AMERICA, INC.

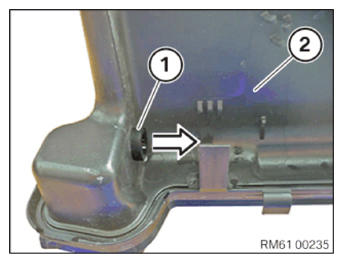

• Pull out the strainer with seal (1) from the washer fluid reservoir (2) in arrow direction.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Replace the window washer pump.

  Parts:  Windshield washer pump

Installing the window washer pump

• Check strainer with seal (1) and pump (2) for damage.

  Courtesy of BMW OF NORTH AMERICA, INC.

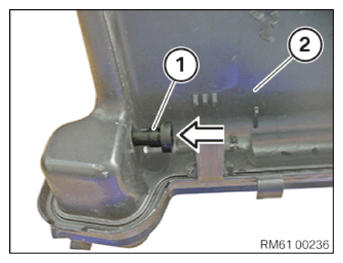

• Position the strainer with seal (1) and install it in the washer fluid reservoir (2) in arrow direction.

  Courtesy of BMW OF NORTH AMERICA, INC.

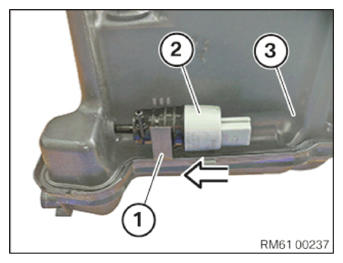

• Position the window washer pump (2) and slide it in the washer fluid reservoir (3) in arrow direction until the detent (1) engages.

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING WASHER FLUID RESERVOIR .
• Refer to INSTALLING THE FRONT WHEEL ARCH COVER .
• Refer to MOUNTING THE FRONT WHEEL .
