Installing washer fluid reservoir

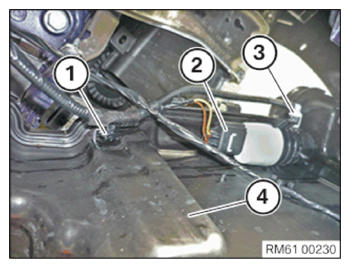

• Position the washer fluid reservoir (4).
• Connect hose pipe (3).
• Connect connector (2).
• Clip in the cable clip (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

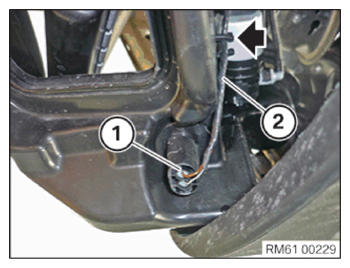

• Connect connector (1).
• Feed in the cable (2) to the cable bracket (arrow).

  Courtesy of BMW OF NORTH AMERICA, INC.

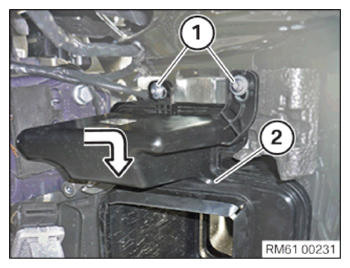

• Position the washer fluid reservoir (2) and feed it in the arrow direction.
• Tighten the screws (1).
  TIGHTENING TORQUES SPECIFICATION



  Washer fluid reservoir
  	tightening torque	8 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

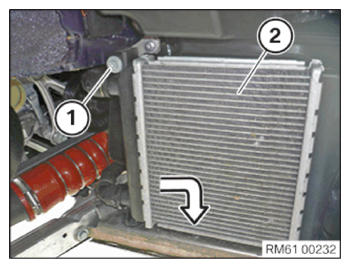

• Position the coolant radiator (2) and install in the arrow direction.
• Tighten down screw (1).
  TIGHTENING TORQUES SPECIFICATION



  External radiator to holder
  M6	tightening torque	8 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

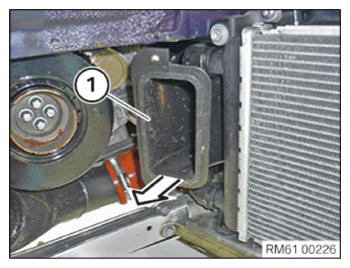

• Position the air duct (1) and install in the arrow direction.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Insert the upper section (1) of the filler channel (3) in the filler channel (3).
• Position the upper section (1) and engage into the lock carrier (2) (arrow).

  Courtesy of BMW OF NORTH AMERICA, INC.

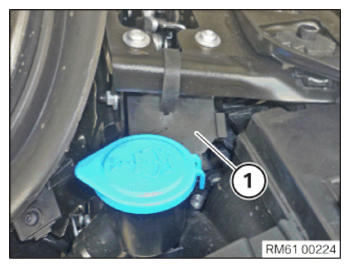

• Fold the cover (1) downwards.

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE FRONT WHEEL ARCH COVER .
• Refer to MOUNTING THE FRONT WHEEL .
