Installing the rear timing case cover

NOTE: RISK OF DAMAGE
Damage to the surface.
The use of metal-cutting tools (e.g., emery cloths) for cleaning surfaces can damage them and lead to leaks and/or engine damage.

Do not use any metal-cutting tools.

NOTE: TECHNICAL INFORMATION
The sealing surfaces must be free of oil, grease and cleaning agents.

Courtesy of BMW OF NORTH AMERICA, INC.

Remove the seal residue in areas (1) using special tool 0 495 102 (11 4 470) .
Clean the sealing surface (1) with brake cleaner.

CONSUMABLE SPECIFICATION

Brake cleaner 2.0	500 ml, Spray can	83192365214
Brake cleaner 2.0	20, Canister	83192365215

NOTE: RISK OF DAMAGE
Damage to the surface.
The use of metal-cutting tools (e.g., emery cloths) for cleaning surfaces can damage them and lead to leaks and/or engine damage.

Do not use any metal-cutting tools.

NOTE: TECHNICAL INFORMATION
The sealing surfaces must be free of oil, grease and cleaning agents.

Courtesy of BMW OF NORTH AMERICA, INC.

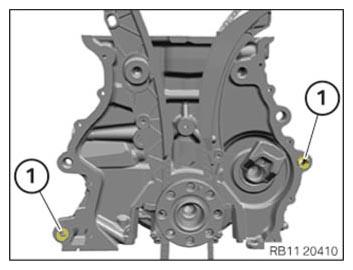

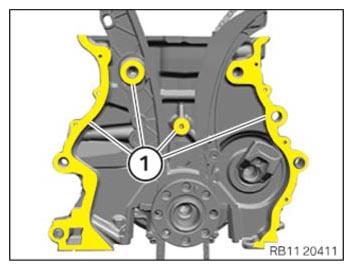

Remove the seal residue in areas (1) using special tool 0 495 102 (11 4 470) .
Clean the sealing surface (1) with brake cleaner.

CONSUMABLE SPECIFICATION

Brake cleaner 2.0	500 ml, Spray can	83192365214
Brake cleaner 2.0	20, Canister	83192365215

Position the timing case cover (1) underneath.
Position the punch on inner side of crankshaft sealing ring (2) .
Remove the crankshaft sealing ring (2) outwards in arrow direction.

Courtesy of BMW OF NORTH AMERICA, INC.
Check the fitting sleeves (1) for damage and replace if necessary.
Check for correct fit of fitting sleeves (1) .

Courtesy of BMW OF NORTH AMERICA, INC.
Have the special tool 2 469 803 ready.

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: TECHNICAL INFORMATION
For additional information OVERVIEW OF CONSUMABLES (BMW/MINI PARTS CATALOGUE) (COUNTRYMAN 2017-2023, EXCEPT PHEV)

Position the sealing compound (1) as shown on the special tool 2 469 803 .
Parts: Sealant

Courtesy of BMW OF NORTH AMERICA, INC.

SEALING COMPOUND SPECIFICATION

Loctite 5970 liquid sealing compound Processing time <10 minutes at room temperature

50 ml, Cartridge

83190404517

NOTE: TECHNICAL INFORMATION
The processing time of the liquid sealing compound can be at a maximum of 10 min.
Commissioning of the assembly is not possible until 25 minutes after the processing time.
Non-observance can lead to leaks in the assembly.

Courtesy of BMW OF NORTH AMERICA, INC.

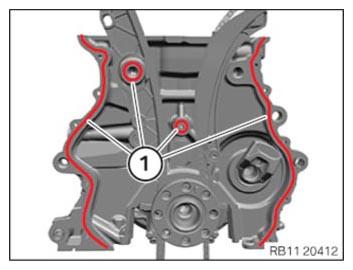

Apply the sealing compound in area (1) along the inner edge.

TECHNICAL DATA SPECIFICATION

Height of the sealing bead
	2.0 mm... 2.5 mm

Replace screws (1) to (11) .
Parts: Screws
Carefully install the timing case cover.
Tighten the screws in order from (1) to (11) .

TIGHTENING TORQUES SPECIFICATION

Rear timing case cover to engine block
M6 x 31 Replace screws.	Joining torque	8Nm
M6 x 31 Replace screws.	Angle of rotation	90°

Fig 1: Timing Case Cover Screws Tightening Sequence

Courtesy of BMW OF NORTH AMERICA, INC.

Connect connectors (1) and lock.
Make sure the connector (1) engages audibly.

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: RISK OF DAMAGE
Radial shaft seal damage.
Taping the sealing lip (inner) and applying oil to the radial shaft seal will lead to its destruction.

Do not tap the sealing lip (inner) of the radial shaft seal.
Do not apply oil to the radial shaft seal.
Install the radial shaft seal dry.

Courtesy of BMW OF NORTH AMERICA, INC.

Preassemble special tool 0 496 137 (11 8 815) on crankshaft.
Replace the crankshaft sealing ring (1) .
Parts: Crankshaft seal
Remove crankshaft sealing ring (1) carefully and in the arrow direction with a rotational movement using special tool 0 496 137 (11 8 815) until crankshaft sealing ring (1) rests on the timing case cover in parallel.
Secure special tool 0 494 029 (11 9 182) to the crankshaft using special tool 0 494 031 (11 9 184) .

Courtesy of BMW OF NORTH AMERICA, INC.
Connect special tool 2 360 215special tool 0 493 881 (11 9 180)in the arrow direction.

Courtesy of BMW OF NORTH AMERICA, INC.
Retract the crankshaft sealing ring using special tools 0 494 028 (11 9 181) and 2 360 215 in conjunction with special tool 0 494 030 (11 9 183) .

Courtesy of BMW OF NORTH AMERICA, INC.
Screw in the crankshaft sealing ring with the tool (1) up to the stop position.

Courtesy of BMW OF NORTH AMERICA, INC.
