Blocking the crankshaft in the TDC firing position of cylinder 1
NOTE:
RISK OF DAMAGE
Damage to the engine.
If the engine is manually rotated in the wrong direction of rotation, the engine can be damaged.
Damage to the engine.
If the engine is manually rotated in the wrong direction of rotation, the engine can be damaged.
- Only rotate the engine manually in the correct direction of rotation: a) clockwise when looking at the damper, or b) counterclockwise when looking at the chain drive, b) applies only if the timing chain is installed in the rear.

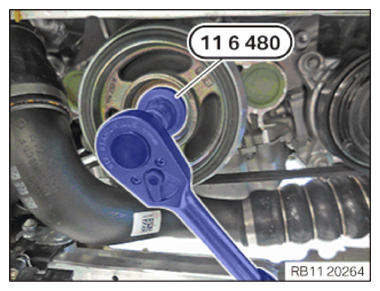

- Turn the engine to the TDC firing position of cylinder 1 using special tool 0 493 380 (11 6 480).
- Vehicles with manual transmission/double-clutch transmission (DCT):

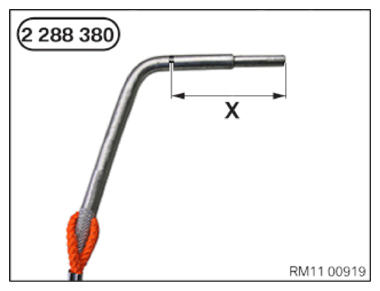

Dimension (X) = 56 mm
Special tool 2 288 380 must be inserted into the dowel hole up to dimension (X) .

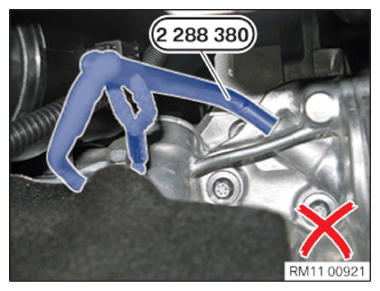

- Vehicles with manual transmission/double-clutch transmission (DCT):
The special tool 2 288 380 is incorrectly positioned.
The TDC firing position of cylinder 1 is not reached.

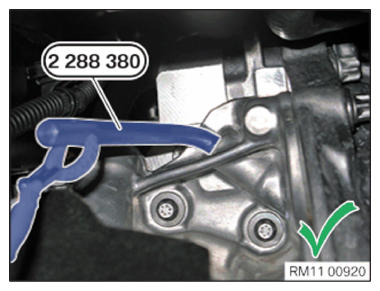

- Vehicles with manual transmission/double-clutch transmission (DCT):
Special tool 2 288 380 is positioned correctly.
The engine is in the TDC firing position of cylinder 1.
- Vehicles with automatic transmission:
Dimension (X) = 66 mm
Special tool 2 288 380 must be inserted into the dowel hole up to dimension (X) .
- Vehicles with automatic transmission:
The special tool 2 288 380 is incorrectly positioned.
The TDC firing position of cylinder 1 is not reached.
- Vehicles with automatic transmission:
Special tool 2 288 380 is positioned correctly.
The engine is in the TDC firing position of cylinder 1.
