51 21 330 Removing and installing/replacing the weather strip on the inside of the front door

Necessary preliminary tasks:

• Remove FRONT DOOR TRIM PANEL
• The INSTRUCTIONS ON INSTALLATION OF WINDOW SEALS  serve as the basis for this repair instructions and must be observed without fail.

If weather strip is reused, make sure it is not bent.

Removal:

Release weather strip (1) from brackets (2) and pull off upwards.

Fig 1: Weather Strip And Brackets

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Shaped part (1) and retaining elements (2) of weather strip (3) must not be damaged.

Shaped part (1) must be correctly threaded into the door.

Coat weather strip (3) prior to fitting with APPROVED LUBRICANT .

Fig 2: Shaped Part, Retaining Elements And Weather Strip

Courtesy of BMW OF NORTH AMERICA, INC.

If necessary, remove clamps from weather strip and attach to door.

Replace faulty clamps.

Engage weather strip (1) in brackets (2) and connect to door.

Fig 3: Weather Strip And Brackets

Courtesy of BMW OF NORTH AMERICA, INC.

Ensure that weather strip (1) has the right installation position on door (2) and side window (3).

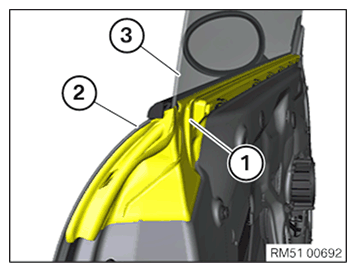

Fig 4: Weather Strip, Door And Side Window

Courtesy of BMW OF NORTH AMERICA, INC.
