51 21 235 Remove and install/replace Bowden cable for inner door opener on left or right front door

Necessary preliminary tasks:

• Remove FRONT DOOR TRIM PANEL

Removal:

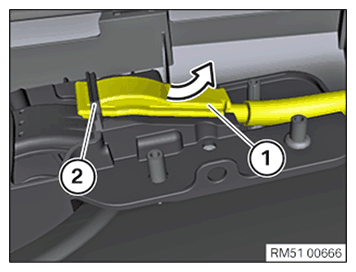

Pull off Bowden cable housing (2) towards the rear/top out of lock (2) - the Bowden cable automatically feeds out during this.

Fig 1: Pulling Off Bowden Cable Housing

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Make sure cable (1) is in correct position in holder (2).

Fig 2: Cable And Holder

Courtesy of BMW OF NORTH AMERICA, INC.

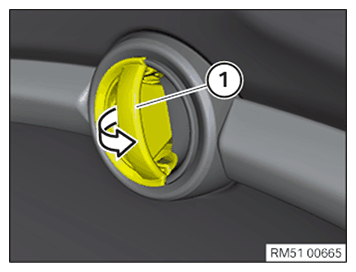

To install the Bowden cable, press inner door handle (1) in direction of arrow.

Fig 3: Pressing Inner Door Handle

Courtesy of BMW OF NORTH AMERICA, INC.

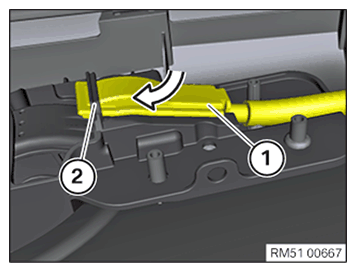

Engage Bowden cable housing (1) to the front/bottom below lock (2).

Fig 4: Engaging Bowden Cable Housing To Front/Bottom Below Lock

Courtesy of BMW OF NORTH AMERICA, INC.
