17 11 015 Removing and installing front left supplemental radiator (B48 JCW)

WARNING: This page is about a different car, the 2018 MINI Cooper, 2017 MINI Cooper, 2016 MINI Cooper, 2015 MINI Cooper, and 2014 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Risk of scalding!
Only carry out repair work on the cooling system after the engine has cooled down!

Necessary preliminary tasks:

Drain COOLANT
Remove FRONT LEFT WHEEL ARCH COVER

Removal:

Release screw (1).

Unlock coolant line (2) from radiator and release.

Feed out radiator (3) and remove.

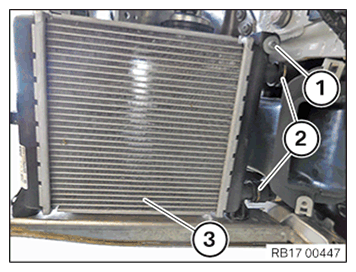

Fig 1: Radiator, Coolant Line And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Connect coolant line (2) and lock.

Coolant line (2) must audibly engage.

Feed in radiator (3) and install.

Tighten screw (1).

Tightening torque 17 10 11AZ .

Fig 2: Radiator, Coolant Line And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

Add COOLANT
