Replacing the left radial shaft seal on the differential (GS6-60DA, GS6X60DA/BA) (Cooper Clubman models with AWD)

Special tools required:

• 23 0 120
• 23 0 370
• 2 407 668

Preliminary work needed:

• Remove left OUTPUT SHAFT only at transmission end and hang up.

Removal:

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

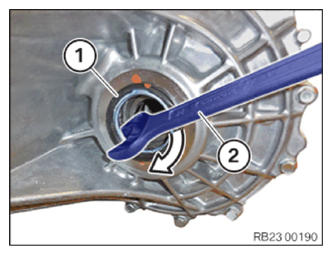

Carefully remove the radial shaft seal (1) from the transmission using a suitable tool (2).

Damage to the transmission housing will result in oil leaks!

Courtesy of BMW OF NORTH AMERICA, INC.

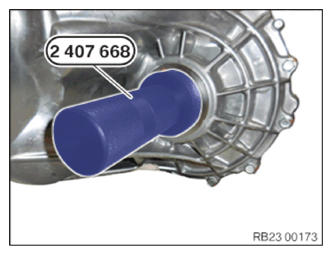

Drive radial shaft seal with special tool 2 407 668 into the transmission housing until sealing ring is flush with differential.

Check TRANSMISSION OIL LEVEL and check for leak.

Required follow-up work:

• Install left OUTPUT SHAFT .

The vehicle must be parked on a level surface in the workshop to check the transmission oil level.

Use only the approved TRANSMISSION OIL and fill to the appropriate level.

Failure to comply with this instruction above will result in serious damage to the transmission.

Recycling:

Catch and dispose of leakage transmission oil.

Observe country-specific waste disposal regulations
