Replace left radial shaft seal on differential (GS6-59BG/DG) (Cooper Clubman S with FWD)
Special tools required:
- 23 0 120
- 23 0 370
- 2 409 230
Preliminary work needed:
- Remove left OUTPUT SHAFT only at transmission end and hang up.
Removal:

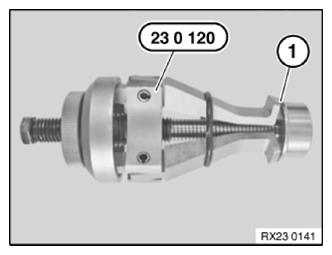

Preparing special tool 23 0 120:
Distance (1) <1 mm.

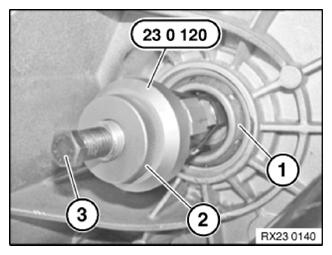

Insert special tool 23 0 120 in the radial shaft seal
as far as stop. The support brackets spread by turning the nuts (2). Then screw in screw (3) and detach radial shaft seal.
IMPORTANT:
Risk of damage:
Damage to the transmission housing will result in oil leaks!
Damage to the transmission housing will result in oil leaks!
Installation:
NOTE:
Coat sealing lips of radial shaft seal with transmission oil.

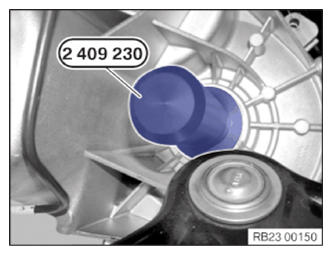

Drive radial shaft seal with special tool 2 409 230 into the transmission housing until sealing ring is flush with differential.
Check TRANSMISSION OIL LEVEL and check for leak.
Required follow-up work:
- Install left OUTPUT SHAFT .
IMPORTANT:
After completion of work, check TRANSMISSION OIL LEVEL
.
The vehicle must be parked on a level surface in the workshop to check the transmission oil level.
Use only the approved TRANSMISSION OIL and fill to the appropriate level.
Failure to comply with this instruction above will result in serious damage to the transmission.
The vehicle must be parked on a level surface in the workshop to check the transmission oil level.
Use only the approved TRANSMISSION OIL and fill to the appropriate level.
Failure to comply with this instruction above will result in serious damage to the transmission.
Recycling:
Catch and dispose of leakage transmission oil.
Observe country-specific waste disposal regulations
