Oil change on manual transmission (GS6-58BG/DG, GS6-59BG/DG) (FWD)
Recycling:
Catch and dispose of leakage transmission oil.
Observe country-specific waste disposal regulations
NOTE:
Transmission is at normal operation temperature.
Attention!
Use only the BMW approved transmission oil.
Failure to comply with this instruction will result in serious damage to the transmission.
Capacity, refer to: TECHNICAL DATA
The vehicle must be level when the transmission oil is filled in the workshop.

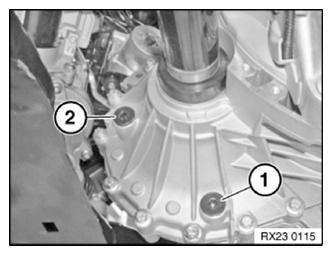

Unscrew oil drain plug (1) and allow oil to flow out completely.
Clean oil drain plug and reinstall.
Tightening torque 23 00 2AZ .
Unscrew filler/fluid level monitoring connector (2) and fill transmission until oil overflows. Allow excess oil to drain and reinstall filler/fluid level monitoring connector.
Tightening torque 23 00 2AZ .
