Replacing right radial shaft seal on differential (8-speed, AISIN GA8F22AW), front (Cooper Clubman S FWD)

Special tools required:

• 23 0 490
• 2 405 250

Preliminary work needed:

• Remove RIGHT OUTPUT SHAFT .
• Remove INTAKE SILENCER HOUSING .

Removal:

Drive a hole into radial shaft seal using a center punch.

Screw special tool 23 0 490 into radial shaft seal.

Drive out radial shaft seal (1) with impact weight (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Installation note:

Coat sealing lips of new radial shaft seal with clean transmission oil.

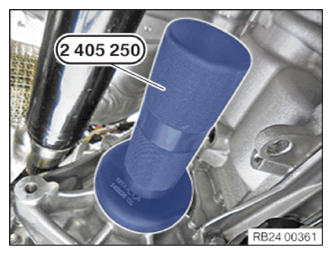

Drive shaft seal firmly home with special tool 2 405 250.

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

• Install RIGHT OUTPUT SHAFT .
• Check TRANSMISSION OIL LEVEL .
• Install INTAKE SILENCER HOUSING .
