Removing and installing/replacing heating and air conditioning blower

Preliminary work needed:

• Remove CONTROLLER  for blower.
• Remove CONTROL UNIT  for heating/air conditioning unit.

Removal:

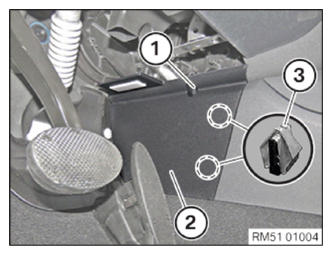

Remove screw (1).

Lever out trim (2) from the clamps (3) and remove.

Courtesy of BMW OF NORTH AMERICA, INC.

Unscrew the screws (1).

Remove blower (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Position blower (2) correctly.

Tighten down screws (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Install trim (2) and engage in clamps (3).

Tighten screw (1).

Tightening torque 51 16 7AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Required reworking:

• Install CONTROLLER  for blower.
• Install CONTROL UNIT  for heating and air conditioning system.
