Remove and install/replace footwell temperature sensor (left)

Preliminary work needed:

• Remove INSTRUMENT PANEL TRIM .

Removal:

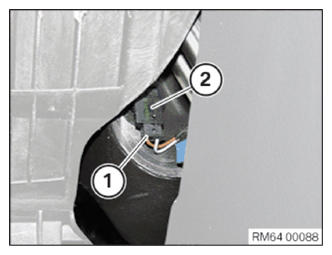

Disconnect connector (1).

Turn temperature sensor (2) in counterclockwise direction and remove.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Position temperature sensor (2) correctly.

Turn temperature sensor (2) in clockwise direction up to the stop.

Connect the connector (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Required reworking:

• Install INSTRUMENT PANEL TRIM .
