72 11 092 Removing and installing/replacing rear left or right safety belt

WARNING: This page is about a different car, the 2019 MINI Cooper, 2018 MINI Cooper, 2017 MINI Cooper, 2016 MINI Cooper, and 2015 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Preliminary work needed:

Remove REAR SEAT
Remove TRUNK WHEEL ARCH PANEL

Removal:

Remove screw (1).

Remove end lining (2).

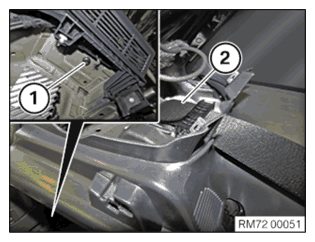

Fig 1: Locating Seat Belt Screw And End Lining

Courtesy of BMW OF NORTH AMERICA, INC.

Remove screw (1).

Feed out electrically motorized reel (2) upwards to the front.

Remove safety belt.

Fig 2: Locating Seat Belt Electrically Motorized Reel

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Install electrically motorized reel (2) downwards to the rear.

NOTE:

Make sure guide is correctly fitted in body.

Electrically motorized reel (2) is encoded against incorrect installation.

Replace screw (1).

Tighten screw (1).

Tightening torque 72 11 20AZ .

Fig 3: Locating Seat Belt Electrically Motorized Reel

Courtesy of BMW OF NORTH AMERICA, INC.

Mount end lining (2).

NOTE: End lining (2) is encoded to prevent incorrect assembly.

Replace screw (1).

Tighten screw (1).

Tightening torque 72 11 22AZ .

Fig 4: Locating Seat Belt Screw And End Lining

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

Install TRUNK WHEEL ARCH PANEL
Install REAR SEAT
