72 12 060 Removing and installing/replacing left or right head airbag (version without sliding/tilting sunroof): Notes

WARNING: This page is about a different car, the 2019 MINI Cooper, 2018 MINI Cooper, 2017 MINI Cooper, 2016 MINI Cooper, and 2015 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

2 230 142

IMPORTANT: Operations on pyrotechnical devices may only be carried out by authorized experts.
Improper, unauthorized operations may result in serious dangers.
Unauthorized persons are strictly prohibited from performing any operations on this system.

WARNING:

Read and comply with SAFETY INSTRUCTIONS .

Failure to observe correct procedures can deploy the airbag and cause injuries.

A damaged head airbag must be replaced.

A damaged head airbag exhibits an impaired protective function and in extreme cases loses its protective function altogether.

Preliminary work needed:

Disconnect BATTERY GROUND LEAD
Lower ROOFLINER

Follow instructions for UNLOCKING AND LOCKING AIRBAG PLUG CONNECTIONS .

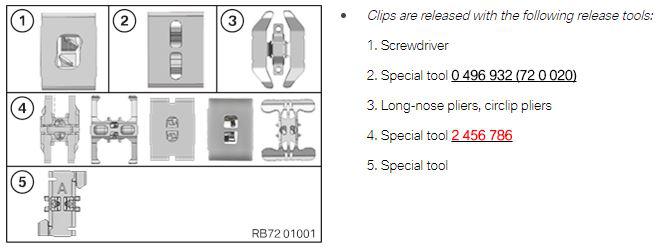

Overview of clips and release tools for head airbag attachment:

Fig 1: Overview Of Clips And Release Tools For Head Airbag Fastening

Courtesy of BMW OF NORTH AMERICA, INC.

Removal:

IMPORTANT: Lay out protective mats to protect the interior equipment against shavings from the drilled-out rivets and damage.
Lay out protective mats in the relevant working area:

Dashboard
Entrance area
Passenger compartment

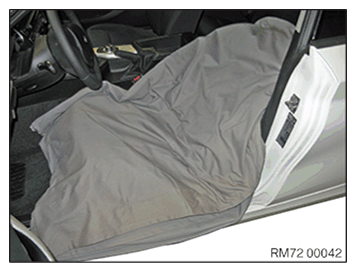

Fig 2: Laying Protective Mats On Seats

Courtesy of BMW OF NORTH AMERICA, INC.

Use special tool 2 230 142 to unlock retaining clip (1).

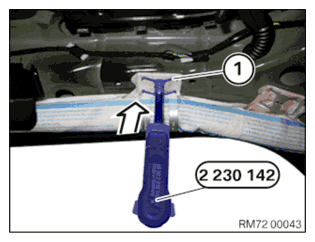

Fig 3: Unlocking Retaining Clip Of Head Airbag Using Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock all clamps in marked area with special tool 2 230 142 .

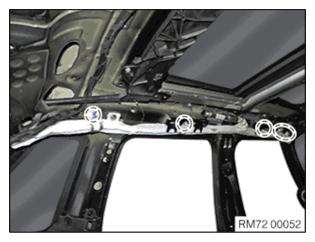

Fig 4: Unlocking Clamps Of Head Airbag

Courtesy of BMW OF NORTH AMERICA, INC.

Drill out rivet heads (1).

Note instructions for the REMOVAL OF RIVETS .

Release fixture (2).

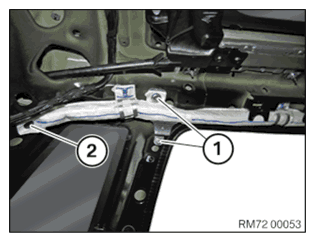

Fig 5: Locating Rivet Heads For Head Airbag

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock and disconnect connector (1) for gas generator.

Drill out rivet heads (2).

Note instructions for the REMOVAL OF RIVETS .

Remove the gas generator with the folding pack.

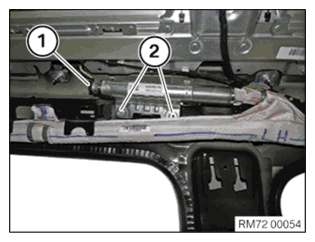

Fig 6: Locating Connector For Gas Generator

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Mount gas generator with folding pack.

Secure gas generator with rivets (2).

Follow instructions for RIVETS .

Connect the connector (1).

Fig 7: Locating Connector For Gas Generator

Courtesy of BMW OF NORTH AMERICA, INC.

Mount rivet (1).

Follow instructions for RIVETS .

Mount the clip (2).

Fig 8: Locating Rivet Heads For Head Airbag

Courtesy of BMW OF NORTH AMERICA, INC.

Secure folding pack with clamps on body.

NOTE:

Retaining clips of folding pack must not be damaged.

Replace faulty retaining clips.

Replace retaining clips after airbag deployment.

Fig 9: Unlocking Clamps Of Head Airbag

Courtesy of BMW OF NORTH AMERICA, INC.

Remove protective mats from vehicle.

Fig 10: Laying Protective Mats On Seats

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

Fit the HEADLINING
Connect BATTERY GROUND LEAD
