51 31 284 Removing and installing/replacing lower cover on rear window

WARNING: This page is about a different car, the 2019 MINI Cooper, 2018 MINI Cooper, 2017 MINI Cooper, 2016 MINI Cooper, and 2015 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

REMOVAL:

Unclip trim strip (1) from retaining strip (2) in arrow direction.

Fig 1: Removing Trim Strip From Retaining Strip
G11649275Courtesy of BMW OF NORTH AMERICA, INC.

INSTALLATION:

Engage trim strip (1).

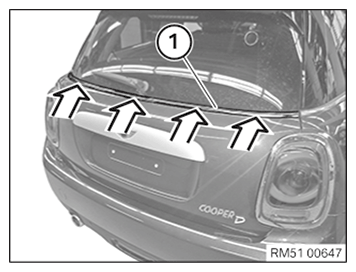

Fig 2: Attaching Trim Strip
G11649276Courtesy of BMW OF NORTH AMERICA, INC.
