51 72 010 Replace edge protection for left or right rear door

WARNING: This page is about a different car, the 2019 MINI Cooper, 2018 MINI Cooper, 2017 MINI Cooper, 2016 MINI Cooper, and 2015 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Preliminary work needed:

Removal:

Detach edge protection (1).

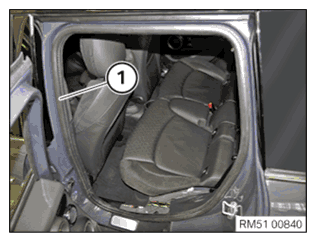

Fig 1: Detaching Edge Protection
G11788904Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Follow the notes on lining SEALS .

Mount edge protection (1) starting at the top on the right.

NOTE: Make sure edge protection (1) is correctly fitted on body and all trim panel components.
Fig 2: Detaching Edge Protection
G11788904Courtesy of BMW OF NORTH AMERICA, INC.
