51 22 370 Removing and installing/replacing cover (gasket) on rear door at bottom left or right

WARNING: This page is about a different car, the 2019 MINI Cooper, 2018 MINI Cooper, 2017 MINI Cooper, 2016 MINI Cooper, and 2015 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

2 298 505

Removal:

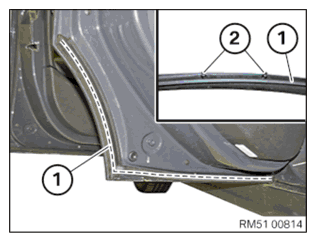

Unclip the clips (2) along the broken line by means of special tool 2 298 505 .

Remove cover (1).

Fig 1: Removing Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

NOTE: Clips (2) of cover (1) must not be damaged or missing.

Fig 2: Installing Clips Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Install cover (1).

Clip in clips (2) along broken line.

Fig 3: Removing Cover

Courtesy of BMW OF NORTH AMERICA, INC.
