51 16 480 Removing and installing or replacing front grab handle

WARNING: This page is about a different car, the 2019 MINI Cooper, 2018 MINI Cooper, 2017 MINI Cooper, 2016 MINI Cooper, and 2015 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

When working on trim panel components, make sure that visible surfaces are not scratched or damaged (e.g. by sharp-edged tools).

Removal:

Fold grab handle (1) downwards.

Disengage and remove locking clips (2) with angle screwdriver (3), as shown.

Fig 1: Removing Grab Handle Locking Wedge With Screwdriver

Courtesy of BMW OF NORTH AMERICA, INC.

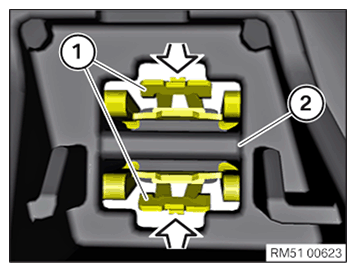

Release bottom and top release hook (1) with screwdriver.

Remove grab handle (2) and place to side.

Fig 2: Removing Grab Handle

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Insert grab handle (1) into body.

Engage locking clips (2) on both sides of grab handle (1).

NOTE: Only after grab handle (1) is snapped in correctly can locking clips (2) be fully locked in position in grab handle (1).

Fig 3: Installing Grab Handle

Courtesy of BMW OF NORTH AMERICA, INC.
