51 16 085 Removing and installing/replacing sun visor and counter support on driver's side (side)

WARNING: This page is about a different car, the 2019 MINI Cooper, 2018 MINI Cooper, 2017 MINI Cooper, 2016 MINI Cooper, and 2015 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

REMOVAL:

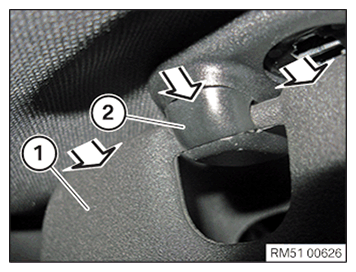

Lift out cover (1) at front and rear and remove sun visor (2).

Fig 1: Removing Sun Visor (Front And Rear)

Courtesy of BMW OF NORTH AMERICA, INC.

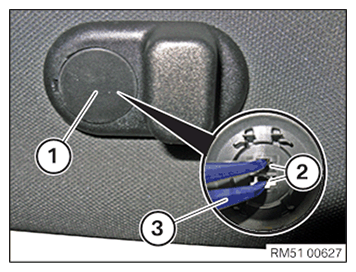

Lift off cover (1).

Unlock clamp (2) with suitable long-nose pliers and remove counter support.

Fig 2: Removing Clamp Using Suitable Long-Nose Pliers

Courtesy of BMW OF NORTH AMERICA, INC.

INSTALLATION:

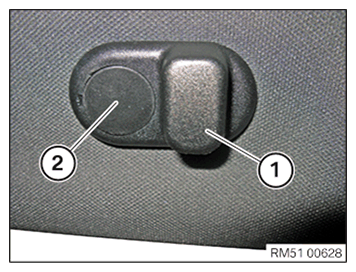

Engage counter support (1) and mount cover (2).

Fig 3: Engaging Counter Support And Mount Cover

Courtesy of BMW OF NORTH AMERICA, INC.

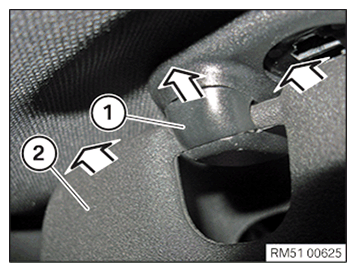

Attach sun visor (2).

Engage cover (2) at front and rear.

Fig 4: Attaching Sun Visor

Courtesy of BMW OF NORTH AMERICA, INC.
