51 16 041 Removing and installing/replacing protective cap on left or right outside rearview mirror

WARNING: This page is about a different car, the 2019 MINI Cooper, 2018 MINI Cooper, 2017 MINI Cooper, 2016 MINI Cooper, and 2015 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Preliminary work needed:

Remove MIRROR GLASS

Removal:

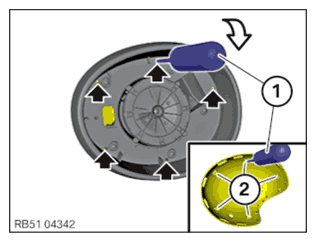

Unlock the protective cap using a small screwdriver (1) through the bores (see arrows).

Unlock the protective cap with a slight tug clockwise on the retaining lugs (2).

Fig 1: Removing Protective Cap Using Small Screwdriver

Courtesy of BMW OF NORTH AMERICA, INC.

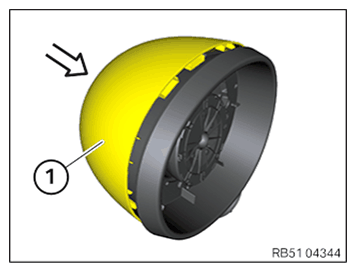

Remove protective cap (1).

Fig 2: Removing Protective Cap

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

The detents (1) on housing (2) must not be damaged.

Fig 3: Latch Mechanisms On Housing

Courtesy of BMW OF NORTH AMERICA, INC.

Install the protective cap (1) and engage it on all the detents through pressure.

Fig 4: Installing Protective Cap

Courtesy of BMW OF NORTH AMERICA, INC.
