51 43 320 Removing and installing/replacing trim panel for rear roof pillar (D-pillar), left (right)

WARNING: This page is about a different car, the 2019 MINI Cooper, 2018 MINI Cooper, 2017 MINI Cooper, 2016 MINI Cooper, and 2015 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Removal:

Release trim panel (1) from clamp (2).

Lift off trim panel (1) from clip (3) in upwards direction and remove.

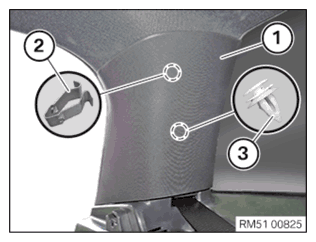

Fig 1: Releasing Trim Panel From Clamp

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

NOTE: Replace clamps (2).
Clip (3) on the trim panel (1) must not be damaged or missing.

Fig 2: Clipping On Trim Panel

Courtesy of BMW OF NORTH AMERICA, INC.

Position trim panel (1) at bottom and engage in clip (3) and clamp (2).

Fig 3: Releasing Trim Panel From Clamp

Courtesy of BMW OF NORTH AMERICA, INC.
